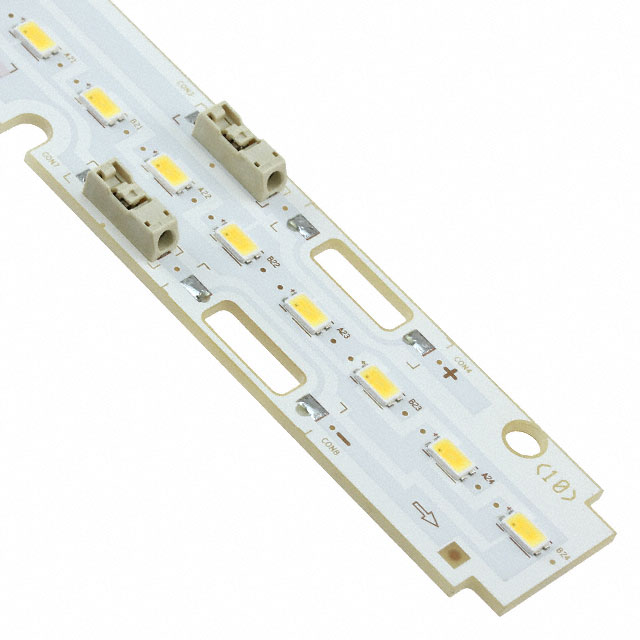

SI-B8U14156LWW

Samsung Semiconductor, Inc.

LED MOD LT-S562L LNR STRP 3500K

Deep-Dive with AI

Search across all available documentation for this part.

SI-B8U14156LWW

Samsung Semiconductor, Inc.

LED MOD LT-S562L LNR STRP 3500K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI-B8U14156LWW

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	720 mA
Current - Test	400 mA
Features	With Connector
Height [z]	5.8 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	157 lm/W
Luminous Flux @ Current/Temperature	2210 lm
Size / Dimension [x]	559.7 mm
Size / Dimension [y]	23.8 mm
Temperature - Test	50 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	35.2 V

SI-B8 Series

...

Part	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Height [z]	Features	CRI (Color Rendering Index)	Configuration	Temperature - Test	Current - Max [Max]	Type	Luminous Flux @ Current/Temperature	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Samsung Semiconductor, Inc. SI-B8T162560WW	4000 K	40 mm	560 mm	Flat	5.6 mm	With Connector	80	Linear Light Strip	45 °C	750 mA	LED Module	2160 lm	115 °	Neutral White	24.3 V	127 lm/W
Samsung Semiconductor, Inc. SI-B8R09626001	5000 K	250 mm	259 mm	Flat	5.8 mm	With Connector	80	Rectangle	35 °C	600 mA	LED Module	1420 lm	115 °	Cool White	24 V	154 lm/W	385 mA
Samsung Semiconductor, Inc. SI-B8R07128SWW		23.8 mm	279.7 mm	Flat	5.8 mm	With Connector	80	Linear Light Strip	50 °C	1.44 A	LED Module	1140 lm	115 °	Cool White	8.8 V		800 mA
Samsung Semiconductor, Inc. SI-B8V09526001	3000 K	250 mm	259 mm	Flat	6.6 mm	With Connector	80	Rectangle	35 °C	600 mA	LED Module	1260 lm	145 °	Warm White	24 V	137 lm/W	385 mA
Samsung Semiconductor, Inc. SI-B8U14156LWW	3500 K	23.8 mm	559.7 mm	Flat	5.8 mm	With Connector	80	Linear Light Strip	50 °C	720 mA	LED Module	2210 lm	115 °	Warm White	35.2 V	157 lm/W	400 mA
Samsung Semiconductor, Inc. SI-B8V171560WW	3000 K	18 mm	560 mm	Flat	5.8 mm	With Connector	80	Linear Light Strip	50 °C	900 mA	LED Module	2350 lm	115 °	Warm White	24 V	140 lm/W
Samsung Semiconductor, Inc. SI-B8T171550WW	4000 K	18 mm	550 mm	Flat	5.8 mm	With Connector	80	Linear Light Strip	50 °C	900 mA	LED Module	2460 lm	115 °	Neutral White	24 V	146 lm/W
Samsung Semiconductor, Inc. SI-B8T251560WW	4000 K	18 mm	560 mm	Flat	5.5 mm		80	Linear Light Strip	65 °C	2.8 A	LED Module	4510 lm	118 °	Neutral White	23 V	175 lm/W	1.12 A
Samsung Semiconductor, Inc. SI-B8U26156CUS	3500 K	18 mm	560 mm	Flat	5.5 mm		80	Linear Light Strip	65 °C	1.62 A	LED Module	3744 lm		Warm White	24.4 V	137 lm/W	1.12 A	4120 lm	3370 lm
Samsung Semiconductor, Inc. SI-B8R051280WW	5000 K	18 mm	275 mm	Flat	5.8 mm		80	Linear Light Strip	55 °C		LED Module	766 lm	115 °	Cool White	12 V	142 lm/W	450 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	224	$ 8.51

Description

General part information

SI-B8 Series

LED Lighting COBs Engines Modules LED Module LT-S562L White, Warm Linear Light Strip

Documents

Technical documentation and resources

No documents available
