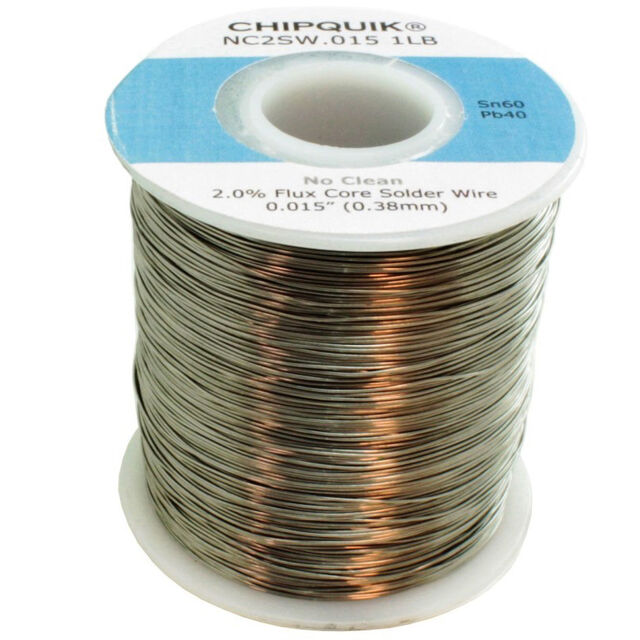

NC2SW.015 1LB
ActiveChip Quik Inc.
SOLDER WIRE 60/40 TIN/LEAD (SN60
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NC2SW.015 1LB |
|---|---|
| Composition | Sn60Pb40 (60/40) |
| Diameter [diameter] | 0.015 in |
| Diameter [diameter] | 0.38 mm |
| Flux Type | No-Clean |
| Form | 16 oz |
| Form | 1 lb |
| Form | Spool |
| Melting Point [Max] [custom] | 370 °F |
| Melting Point [Max] [custom] | 188 °C |
| Melting Point [Min] [custom] | 361 °F |
| Melting Point [Min] [custom] | 183 °C |
| Process | Leaded |
| Type | Wire Solder |
NC2SW Series
| Part | Form | Form | Type | Process | Flux Type | Composition | Melting Point [Max] [custom] | Melting Point [Min] [custom] | Melting Point [Max] [custom] | Melting Point [Min] [custom] | Wire Gauge | Diameter [diameter] | Diameter [diameter] | Form | Melting Point [custom] | Melting Point [custom] | Melting Point [Max] [custom] | Melting Point [Min] [custom] | Melting Point [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip Quik Inc. | 0.3 oz 8.51 g | Tube | Wire Solder | Leaded | No-Clean | Sn60Pb40 (60/40) | 370 °F | 361 °F | 188 °C | 183 °C | 24 AWG 25 mmý | 0.51 mm | 0.02 in | ||||||
Chip Quik Inc. | 56.7 g | Spool | Wire Solder | No-Clean | Sn99.3Cu0.7 (99.3/0.7) | 0.38 mm | 0.015 in | 2 oz | 441 °F | 227 °C | |||||||||
Chip Quik Inc. | 56.7 g | Spool | Wire Solder | Leaded | No-Clean | Sn60Pb40 (60/40) | 361 °F | 0.38 mm | 0.015 in | 2 oz | 370 °F | 183 °C | 188 °C | ||||||
Chip Quik Inc. | 226.8 g | Spool | Wire Solder | No-Clean | Sn99.3Cu0.7 (99.3/0.7) | 0.38 mm | 0.015 in | 8 oz | 441 °F | 227 °C | |||||||||
Chip Quik Inc. | 0.2 oz 5.66 g | Tube | Wire Solder | No-Clean | Sn99.3Cu0.7 (99.3/0.7) | 0.38 mm | 0.015 in | 441 °F | 227 °C | ||||||||||
Chip Quik Inc. | 16 oz | Spool | Wire Solder | No-Clean | Sn99.3Cu0.7 (99.3/0.7) | 0.38 mm | 0.015 in | 1 lb | 441 °F | 227 °C | |||||||||
Chip Quik Inc. | 16 oz | Spool | Wire Solder | Leaded | No-Clean | Sn60Pb40 (60/40) | 361 °F | 0.38 mm | 0.015 in | 1 lb | 370 °F | 183 °C | 188 °C | ||||||
Chip Quik Inc. | 0.2 oz 5.66 g | Tube | Wire Solder | Leaded | No-Clean | Sn60Pb40 (60/40) | 361 °F | 0.38 mm | 0.015 in | 370 °F | 183 °C | 188 °C | |||||||
Chip Quik Inc. | 28.35 g | Spool | Wire Solder | No-Clean | Sn99.3Cu0.7 (99.3/0.7) | 0.38 mm | 0.015 in | 1 oz | 441 °F | 227 °C | |||||||||
Chip Quik Inc. | 113.4 g | Spool | Wire Solder | Leaded | No-Clean | Sn60Pb40 (60/40) | 361 °F | 0.38 mm | 0.015 in | 4 oz | 370 °F | 183 °C | 188 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.63 | |
| 10 | $ 47.72 | |||
| 100 | $ 38.18 | |||
Description
General part information
NC2SW Series
Leaded No-Clean Wire Solder Sn60Pb40 (60/40) Spool, 1 lb (453.592g)
