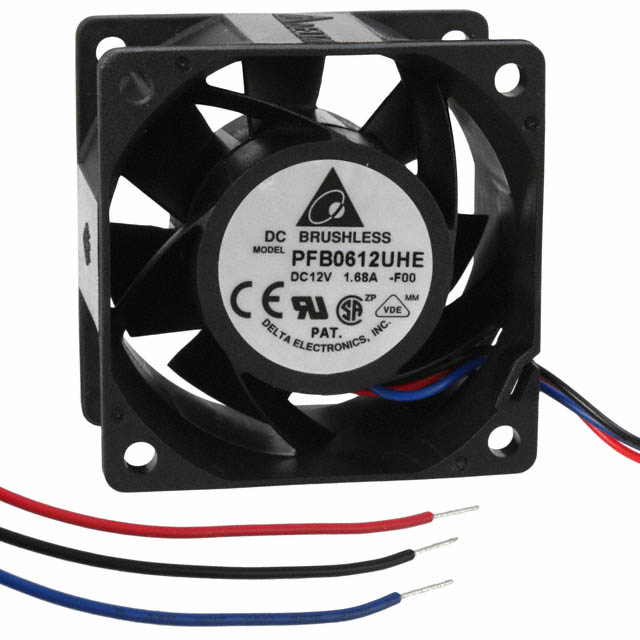

PFB0612UHE-F00

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 67.85CFM 61.5DB 60 X 60 X 38MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

PFB0612UHE-F00

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 67.85CFM 61.5DB 60 X 60 X 38MM

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0612UHE-F00

Air Flow	67.8 CFM
Air Flow	1.9 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.4 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	16.8 W
RPM	12000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	2.129 in H2O
Static Pressure	530.3 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	130.18 g
Weight	0.287 lb
Width [y]	38 mm

PFB0612 Series

Part	Material - Frame	Features	Bearing Type	Termination	Voltage - Rated	Lifetime @ Temp.	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Material - Blade	Air Flow	Air Flow	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	RPM	Weight	Weight	Noise	Approval Agency	Current Rating (Amps)	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Ingress Protection
Delta Electronics PFB0612GHE-R00	Plastic	Locked Rotor Sensor	Ball	3 Wire Leads	12 VDC	50000 Hrs	10.2 W	60 mm	60 mm	Plastic	55.6 CFM	1.56 mł/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	10000 RPM	130.18 g	0.287 lb	57.5 dB	CE CSA UL VDE	0.85 A	1.444 in H2O	359.7 Pa	13.2 VDC	7 V
Delta Electronics PFB0612GHE	Plastic		Ball	2 Wire Leads	12 VDC	50000 Hrs	10.2 W	60 mm	60 mm	Plastic	55.6 CFM	1.56 mł/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	10000 RPM	130.18 g	0.287 lb	57.5 dB	CE CSA UL VDE	0.85 A	1.444 in H2O	359.7 Pa	13.2 VDC	7 V
Delta Electronics PFB0612GHE-T500	Plastic		Ball	2 Wire Leads	12 VDC	50000 Hrs	10.2 W	60 mm	60 mm	Plastic	55.6 CFM	1.56 mł/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	10000 RPM	130.18 g	0.287 lb	57.5 dB	CE CSA UL VDE	0.85 A	1.444 in H2O	359.7 Pa	13.2 VDC	7 V	IP55 - Dust Protected Water Resistant
Delta Electronics PFB0612UHE-T50F	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Ball	3 Wire Leads	12 VDC	50000 Hrs	16.8 W	60 mm	60 mm	Plastic	67.8 CFM	1.9 m³/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	12000 RPM	130.18 g	0.287 lb	61.5 dB(A)	CE CSA UL VDE	1.4 A	2.129 in H2O	530.3 Pa	13.2 VDC	7 V	IP55 - Dust Protected Water Resistant
Delta Electronics PFB0612SHE-R00	Plastic	Locked Rotor Sensor	Ball	3 Wire Leads	12 VDC	70000 Hrs		60 mm	60 mm	Plastic	43.6 CFM	1.22 m³/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	8000 RPM	130.18 g	0.287 lb	50.5 dB(A)	CE CSA UL VDE	480 mA	0.918 in H2O	228.7 Pa	13.2 VDC	7 V
Delta Electronics PFB0612EHE-F00	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Ball	3 Wire Leads	12 VDC	70000 Hrs	7.56 W	60 mm	60 mm	Plastic	50.4 CFM	1.41 mł/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	9000 RPM	130.18 g	0.287 lb	54 dB	CE CSA UL VDE	0.63 A	1.203 in H2O	299.7 Pa	13.2 VDC	7 V
Delta Electronics PFB0612UHE-R00	Plastic	Locked Rotor Sensor	Ball	3 Wire Leads	12 VDC	50000 Hrs	16.8 W	60 mm	60 mm	Plastic	67.8 CFM	1.9 m³/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	12000 RPM	130.18 g	0.287 lb	61.5 dB(A)	CE CSA UL VDE	1.4 A	2.129 in H2O	530.3 Pa	13.2 VDC	7 V
Delta Electronics PFB0612UHE-F00	Plastic	Locked Rotor Protection Speed Sensor (Tach)	Ball	3 Wire Leads	12 VDC	50000 Hrs	16.8 W	60 mm	60 mm	Plastic	67.8 CFM	1.9 m³/min	38 mm	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	12000 RPM	130.18 g	0.287 lb	61.5 dB(A)	CE CSA UL VDE	1.4 A	2.129 in H2O	530.3 Pa	13.2 VDC	7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 10.77
Digikey	Bulk	1	$ 23.04
		10	$ 21.43
		25	$ 19.29
		50	$ 17.68
		120	$ 16.61
		360	$ 14.47
		600	$ 13.93

Description

General part information

PFB0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 67.8 CFM (1.90m³/min) 3 Wire Leads
