0190580026

Active

Molex

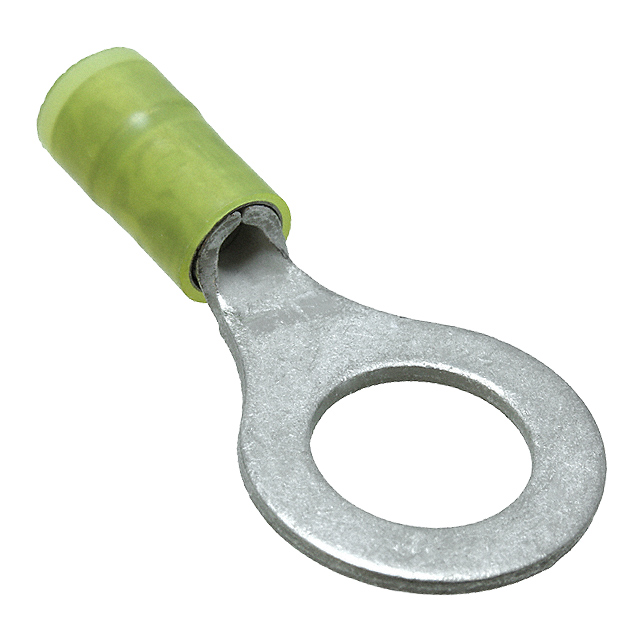

CONN RING CIRC 14-16AWG #7/16

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0190580026

Active

Molex

CONN RING CIRC 14-16AWG #7/16

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190580026

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Features	Heavy Duty
Insulation	Insulated
Insulation Diameter [diameter]	5.72 mm
Insulation Diameter [diameter]	0.225 "
Length - Overall [x]	1.586 in
Length - Overall [x]	40.28 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	7/16 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges [y]	0.75 in
Width - Outer Edges [y]	19.05 mm

019058 Series

Part	Contact Material	Contact Finish	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Mounting Type	Terminal Type	Termination	Features	Color	Stud/Tab Size	Insulation	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Length - Overall	Length - Overall	Insulation Diameter	Insulation Diameter
Molex 0190580011
Molex 0190580047	Copper	Electro-Tin	Nylon Polyamide (PA)	27.71 mm	1.091 in	Free Hanging (In-Line)	Circular	Crimp	Heavy Duty	Yellow	10 Stud	Insulated	50 mils	0.05 in	0.375 in	9.53 mm	5.72 mm	0.225 "
Molex 0190580117	Copper	Electro-Tin	Nylon Polyamide (PA)	34.59 mm	1.362 in	Free Hanging (In-Line)	Circular	Crimp	Heavy Duty	Yellow		Insulated	50 mils	0.05 in			5.72 mm	0.225 "	3/8 Stud	0.592 in	15.04 mm
Molex 0190580055	Copper	Electro-Tin	Nylon Polyamide (PA)	31.95 mm	1.258 in	Free Hanging (In-Line)	Circular	Crimp	Heavy Duty	Yellow	10 Stud	Insulated	50 mils	0.05 in			5.72 mm	0.225 "		0.53 in		13.46 mm
Molex 0190580073	Brass	Electro-Tin	Poly-Vinyl Chloride (PVC)			Free Hanging (In-Line)	Circular	Crimp		Yellow Black Stripe	0.3125 Stud	Insulated					5.92 mm	0.233 in		0.54 in	13.72 mm		1.25 in	31.75 mm
Molex 0190580050	Copper	Electro-Tin	Nylon Polyamide (PA)	27.71 mm	1.091 in	Free Hanging (In-Line)	Circular	Crimp	Heavy Duty	Yellow	10 Stud	Insulated	50 mils	0.05 in	0.375 in	9.53 mm	5.72 mm	0.225 "
Molex 0190580072	Copper	Electro-Tin	Nylon Polyamide (PA)	31.95 mm	1.258 in	Free Hanging (In-Line)	Circular	Crimp	Heavy Duty	Yellow	0.3125 Stud	Insulated	50 mils	0.05 in			5.72 mm	0.225 "		0.53 in		13.46 mm
Molex 0190580061	Copper	Electro-Tin	Nylon Polyamide (PA)	31.7 mm	1.248 in	Free Hanging (In-Line)	Circular	Crimp		Blue	10 Stud	Insulated								0.76 in	19.3 mm				0.255 in	6.48 mm
Molex 0190580012
Molex 0190580026	Copper	Electro-Tin	Nylon Polyamide (PA)	40.28 mm	1.586 in	Free Hanging (In-Line)	Circular	Crimp	Heavy Duty	Yellow		Insulated	50 mils	0.05 in			5.72 mm	0.225 "	7/16 Stud	0.75 in	19.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.98
		10	$ 0.81
		100	$ 0.68
		1000	$ 0.54
		2500	$ 0.49

Description

General part information

019058 Series

Ring Terminal Connector 7/16 Stud Circular 14-16 AWG Crimp
