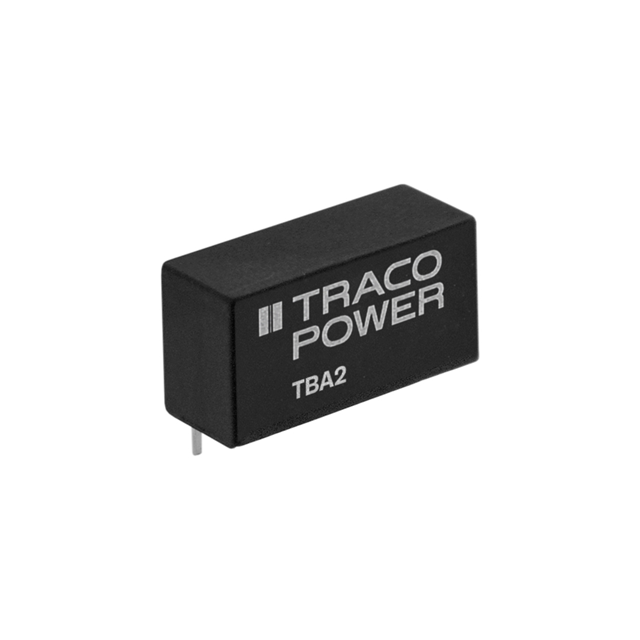

TBA 2-1222

Active

Traco Power

DC DC CONVERTER +/-12V 1.9W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER +/-12V 1.9W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Number of Outputs	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Type	Applications	Efficiency	Current - Output (Max) [Max]
Traco Power TBA 2-0522	1.5 kV	4.5 V	SCP	5.5 V	Through Hole	6-SIP Module 5 Leads	2	80 mA	-40 °C	90 °C	-12 V	12 V	1.9 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)
Traco Power TBA 2-2411	1.5 kV	21.6 V	SCP	26.4 V	Through Hole	6-SIP Module 4 Leads	1		-40 °C	90 °C		5 V	2 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)	78 %	400 mA
Traco Power TBA 2-1222	1.5 kV	10.8 V	SCP	13.2 V	Through Hole	6-SIP Module 5 Leads	2	80 mA	-40 °C	90 °C	-12 V	12 V	1.9 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)	83 %
Traco Power TBA 2-1212	1.5 kV	10.8 V	SCP	13.2 V	Through Hole	6-SIP Module 4 Leads	1	165 mA	-40 °C	90 °C		12 V	2 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 80mA, 80mA 10.8V - 13.2V Input
