SF600G-153005

Active

CUI Devices

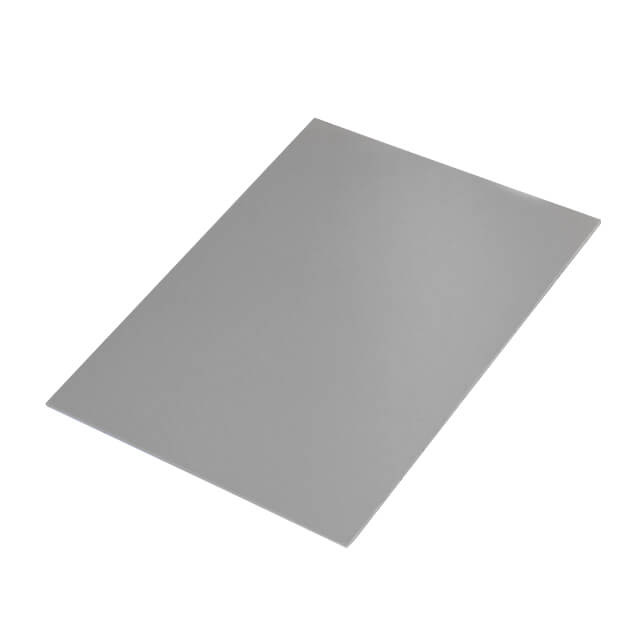

THERM PAD 15MMX30MM GRAY

Search across all available documentation for this part.

Active

CUI Devices

THERM PAD 15MMX30MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Outline [y]	Outline [x]	Adhesive	Thermal Conductivity	Thickness	Thickness	Shape	Color
CUI Devices SF600-505005	50 mm	50 mm	Tacky - Both Sides	5 W/m-K	0.0197 in	0.5 mm	Square	Gray
CUI Devices SF600G-151505	15 mm	15 mm	Tacky - Both Sides	6 W/m-K	0.0197 in	0.5 mm	Square	Gray
CUI Devices SF600G-414505	45 mm	41 mm	Tacky - Both Sides	6 W/m-K	0.0197 in	0.5 mm	Rectangular	Gray
CUI Devices SF600-265005	50 mm	26 mm	Tacky - Both Sides	5 W/m-K	0.0197 in	0.5 mm	Rectangular	Gray
CUI Devices SF600-404005	40 mm	40 mm	Tacky - Both Sides	5 W/m-K	0.0197 in	0.5 mm	Square	Gray
CUI Devices SF600G-202005	20 mm	20 mm	Tacky - Both Sides	6 W/m-K	0.0197 in	0.5 mm	Square	Gray
CUI Devices SF600-301205	12 mm	30 mm	Tacky - Both Sides	5 W/m-K	0.0197 in	0.5 mm	Rectangular	Gray
CUI Devices SF600G-204005	40 mm	20 mm	Tacky - Both Sides	6 W/m-K	0.0197 in	0.5 mm	Rectangular	Gray
CUI Devices SF600-153005	30 mm	15 mm	Tacky - Both Sides	5 W/m-K	0.0197 in	0.5 mm	Rectangular	Gray
CUI Devices SF600G-153005	30 mm	15 mm	Tacky - Both Sides	6 W/m-K	0.0197 in	0.5 mm	Rectangular	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Sheet	7	$ 66.83

General part information

Thermal Pad Gray 15.00mm x 30.00mm Rectangular Tacky - Both Sides

Technical documentation and resources
