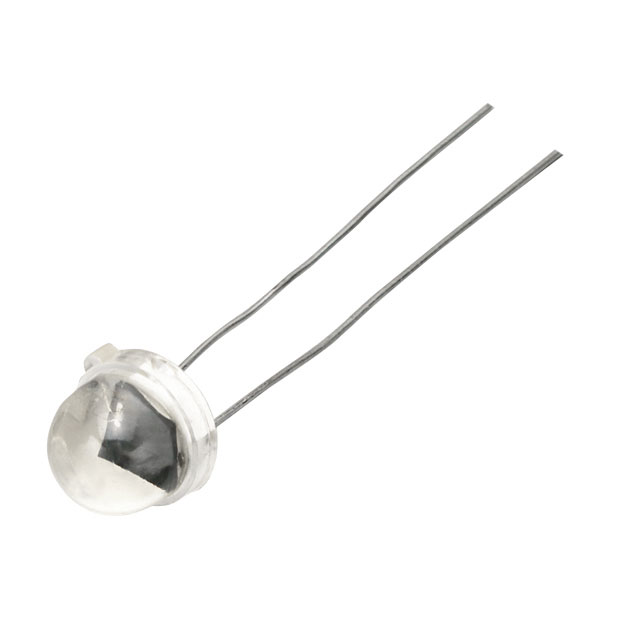

VTP1188SH
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTP1188SH
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTP1188SH |
|---|---|
| Active Area | 11 mm² |
| Current - Dark (Typ) | 3 nA |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Responsivity @ nm | 0.55 A/W |
| Responsivity @ nm [custom] | 925 nm |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Wavelength | 925 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.71 | |
| 100 | $ 1.60 | |||
Description
General part information
VTP1188 Series
Photodiode 925nm Radial
Documents
Technical documentation and resources
