N-500-2 - N-500-2

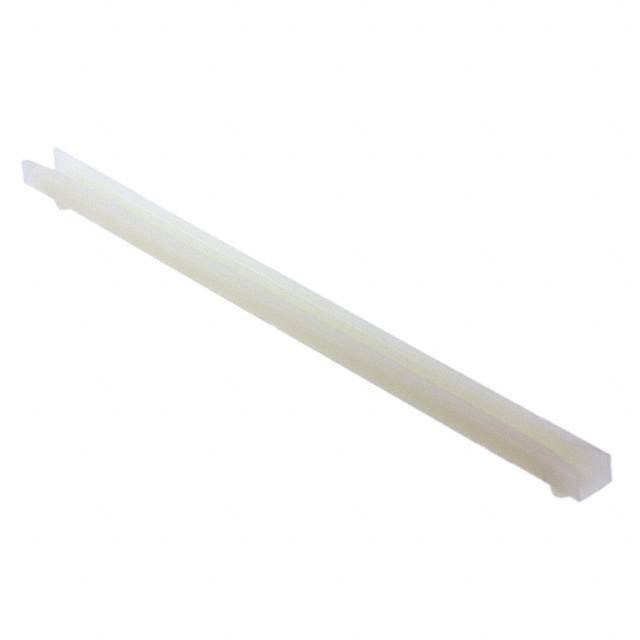

N-500-2

Active
Bivar Inc.

ENCLOSURE ACCESSORY, NARROW WIDTH PRESS IN CARD GUIDE, PCB'S, 0.245 ", 5 "

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN
N-500-2 - N-500-2

N-500-2

Active
Bivar Inc.

ENCLOSURE ACCESSORY, NARROW WIDTH PRESS IN CARD GUIDE, PCB'S, 0.245 ", 5 "

Deep-Dive with AI

DocumentsDatasheetDrawing EN

Technical Specifications

Parameters and characteristics for this part

SpecificationN-500-2
Accessory Type127 mm
Accessory TypeNylon, Snap-In Mount
Accessory Type127 mm
For Use With/Related Products1/16" (1.6mm) Thick PC Boards

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 0.64
10$ 0.56
25$ 0.51
50$ 0.48
100$ 0.46
250$ 0.42
500$ 0.40
1000$ 0.33
2500$ 0.30
NewarkEach 100$ 0.48
500$ 0.41
1000$ 0.34
2500$ 0.31

Description

General part information

N-500 Series

The N-500-2 is a narrow press-in Card Guide made of nylon 66 suitable for use with PCBs.
