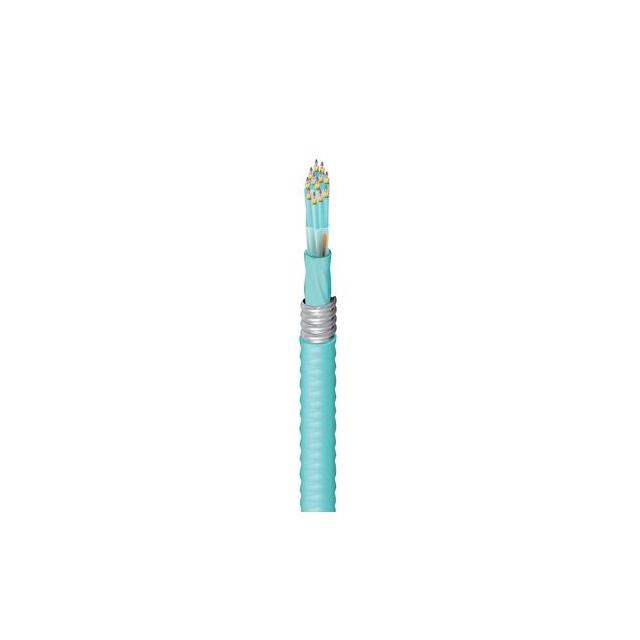

FI4D144FKA

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI4D144FKA

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	144 Fibers
Features	Armored
Jacket (Insulation) Diameter [diameter]	1.49 in
Jacket (Insulation) Diameter [diameter]	37.85 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Aqua
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Core Diameter [diameter]	Jacket Color	Tensile Strength	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Style	Features	Features	Jacket (Insulation) Material	Type	Cladding Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FI4D144AKA	50 µm	Aqua	40.8 kg	OFCP	70 °C	0 °C	Multiple Fibers	144 Fibers	Armored	Poly-Vinyl Chloride (PVC)	Multimode	125 µm	1.425 "	36.2 mm
Belden Inc. FI4D144AK	50 µm	Violet	40.8 kg	OFCP	70 °C	0 °C	Multiple Fibers	144 Fibers	Armored	Poly-Vinyl Chloride (PVC)	Multimode	125 µm	1.425 "	36.2 mm
Belden Inc. FI4D144PK
Belden Inc. FI4D144FKA	50 µm	Aqua	40.8 kg	OFCR	70 °C	-20 C	Multiple Fibers	144 Fibers	Armored	Poly-Vinyl Chloride (PVC)	Multimode	125 µm	1.49 in	37.85 mm
Belden Inc. FI4D144RK	50 µm	Violet	40.8 kg	OFNR	70 °C	-20 C	Multiple Fibers	144 Fibers	Rip Cord	Poly-Vinyl Chloride (PVC)	Multimode	125 µm	1.076 in	27.33 mm
Belden Inc. FI4D144FK
Belden Inc. FI4D144PKA	50 µm	Aqua	40.8 kg	OFNP	70 °C	0 °C	Multiple Fibers	144 Fibers	Rip Cord	Poly-Vinyl Chloride (PVC)	Multimode	125 µm	1.032 in	26.21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 36.47

General part information

Fiber Optic Cable Aqua Multimode 125µm
