3280-5PG-524

Active

Conxall/Switchcraft

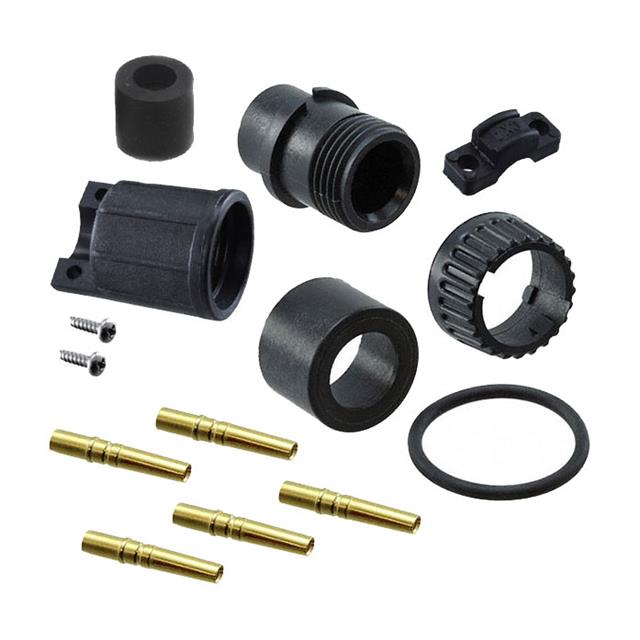

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3280-5PG-524

Active

Conxall/Switchcraft

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3280-5PG-524

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	6.86 mm
Cable Opening [Max] [diameter]	0.27 in
Cable Opening [Min] [diameter]	0.24 in
Cable Opening [Min] [diameter]	6.1 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3280-5P Series

Part	Mounting Type	Primary Material	Current Rating (Amps)	Contact Material	Connector Type	Backshell Material, Plating	Shielding	Features	Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Fastening Type	Contact Finish - Mating	Orientation	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3280-5PG-518	Free Hanging (In-Line)	Plastic	5.6 A	Brass	Male Pins Plug	Nylon Polyamide (PA)	Unshielded	Backshell Cable Clamp	Crimp	600 V	-40 °C	115 °C	Weathertight	Black	4.57 mm	0.18 in	0.2 in	5.08 mm	Bayonet Lock	Gold	Keyed
Conxall/Switchcraft 3280-5PG-318	Free Hanging (In-Line)	Plastic	5.6 A	Brass	Male Pins Plug	Nylon Polyamide (PA)	Unshielded	Backshell	Crimp	600 V	-40 °C	115 °C	Weathertight	Black	4.57 mm	0.18 in	0.2 in	5.08 mm	Bayonet Lock	Gold	Keyed
Conxall/Switchcraft 3280-5PG-530	Free Hanging (In-Line)	Plastic	5.6 A	Brass	Male Pins Plug	Nylon Polyamide (PA)	Unshielded	Backshell Cable Clamp	Crimp	600 V	-40 °C	115 °C	Weathertight	Black					Bayonet Lock	Gold	Keyed	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3280-5PG-524	Free Hanging (In-Line)	Plastic	5.6 A	Brass	Male Pins Plug	Nylon Polyamide (PA)	Unshielded	Backshell Cable Clamp	Crimp	600 V	-40 °C	115 °C	Weathertight	Black					Bayonet Lock	Gold	Keyed	6.1 mm	0.27 in		0.24 in	6.86 mm
Conxall/Switchcraft 3280-5PG-324	Free Hanging (In-Line)	Plastic	5.6 A	Brass	Male Pins Plug	Nylon Polyamide (PA)	Unshielded	Backshell	Crimp	600 V	-40 °C	115 °C	Weathertight	Black					Bayonet Lock	Gold	Keyed	6.1 mm	0.27 in		0.24 in	6.86 mm
Conxall/Switchcraft 3280-5PG-521	Free Hanging (In-Line)	Plastic	5.6 A	Brass	Male Pins Plug	Nylon Polyamide (PA)	Unshielded	Backshell Cable Clamp	Crimp	600 V	-40 °C	115 °C	Weathertight	Black					Bayonet Lock	Gold	Keyed	5.33 mm	0.23 in		0.21 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.74

Description

General part information

3280-5P Series

5 Position Circular Connector Plug, Male Pins Crimp
