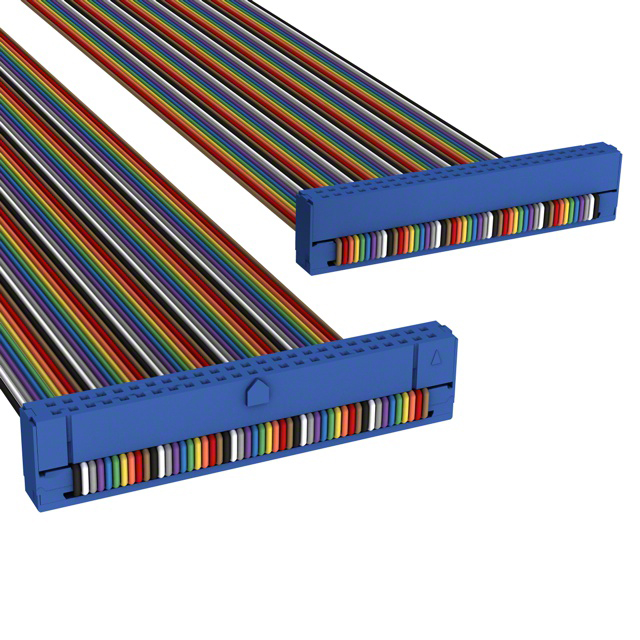

C3DDS-5036M

Active

CW Industries

IDC CABLE - CKR50S/AE50M/CKR50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR50S/AE50M/CKR50S

Technical Specifications

Parameters and characteristics for this part

Specification	C3DDS-5036M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Positions	Features	Length	Length	Length	Number of Rows	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Usage	Shielding	Color	Length [x]	Length [x]
CW Industries C3DDS-5006G	2.54 µm	100 µin	0.05 "	1.27 mm	Tin	50	Polarizing Key Strain Relief	152.4 mm	6 "	0.5 '	2	IDC	Socket to Socket	0.1 in	2.54 mm	Board In	Unshielded
CW Industries C3DDS-5036M	2.54 µm	100 µin	0.05 "	1.27 mm	Tin	50	Polarizing Key Strain Relief				2	IDC	Socket to Socket	0.1 in	2.54 mm	Board In	Unshielded	Multiple Ribbon	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
