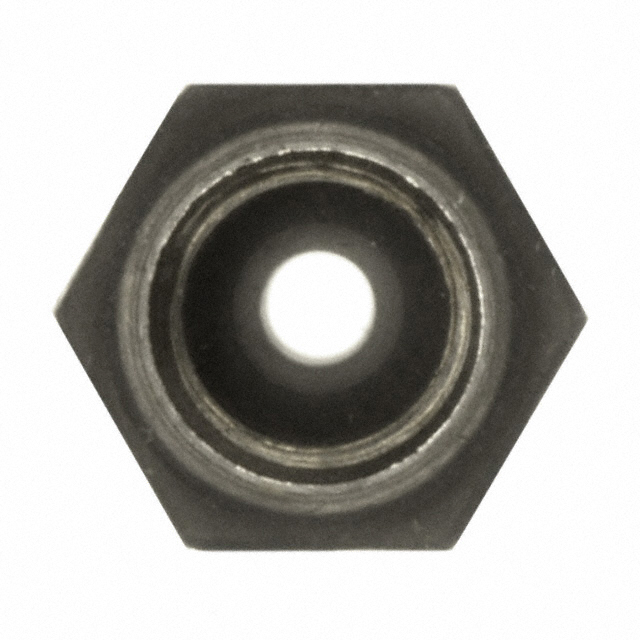

N9040X1/8 2
ActiveAPM HEXSEAL
ROTARY SHAFT SEAL GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N9040X1/8 2
ActiveAPM HEXSEAL
ROTARY SHAFT SEAL GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N9040X1/8 2 |
|---|---|
| Actuator Diameter [diameter] | 0.125 in |
| Actuator Diameter [diameter] | 3.18 mm |
| Color | Gray |
| For Use With/Related Products | Multiple Series |
| Ingress Protection | IP66/IP68 |
| Material | Silicone Rubber |
| Mounting Feature | Front of Panel |
| Operating Temperature [Max] | 204 °C |
| Operating Temperature [Min] | -70 °C |
| Size / Dimension [z] | 0.219 in |
| Size / Dimension [z] | 5.56 mm |
| Thread Size | 1/4-32 NEF-2B |
| Type | Rotary Shaft Seal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.81 | |
| 10 | $ 2.67 | |||
| 25 | $ 2.60 | |||
| 50 | $ 2.56 | |||
| 100 | $ 2.53 | |||
| 250 | $ 2.49 | |||
| 500 | $ 2.46 | |||
| 1000 | $ 2.07 | |||
Description
General part information
N9040X1 Series
ROTARY SHAFT SEAL GRAY
Documents
Technical documentation and resources
