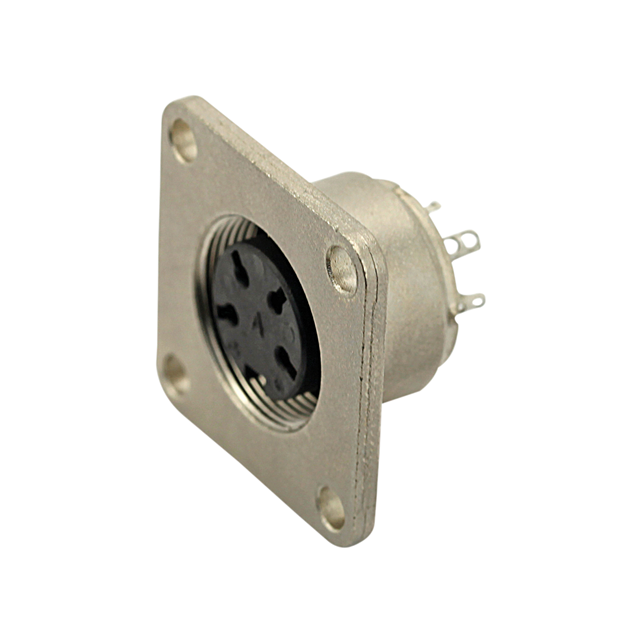

C091 31T014 100 2

Active

Amphenol Sine Systems Corp

FLANGE MOUNT FEMALE METAL RECEPT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FLANGE MOUNT FEMALE METAL RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 31T014 100 2

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	3 A
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	14
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-14
Shielding	Shielded
Voltage Rating	60 VDC

Part	Current Rating (Amps)	Shielding	Primary Material	Number of Positions	Material Flammability Rating	Insert Material	Shell Material	Applications	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shell Finish	Shell Size - Insert	Mounting Feature	Contact Finish - Mating	Voltage Rating	Color
Amphenol Sine Systems Corp C091 31T014 100 2	3 A	Shielded	Metal	14	UL94 V-0	Thermoplastic	Zinc Die Cast	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Keyed	Receptacle Female Sockets	100 °C	-40 °C	IP65 IP67 IP69K	Nickel	M16-14	Flange	Silver	60 VDC	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.62

General part information

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
