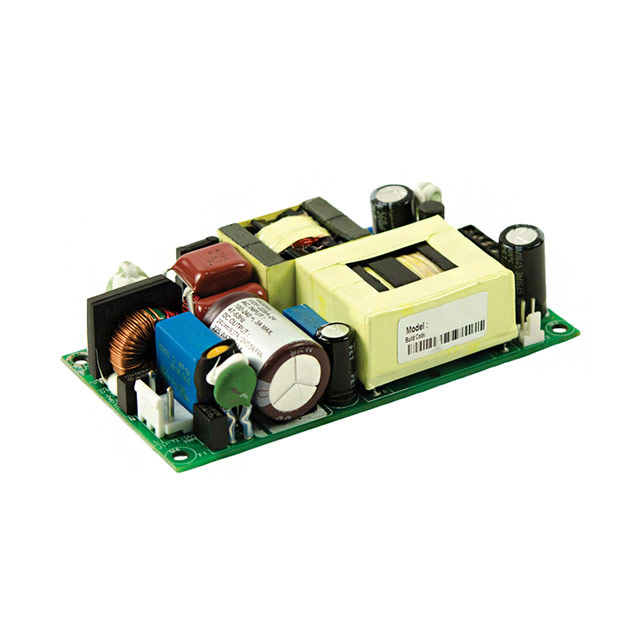

VOF-225A-30

Obsolete

CUI Inc.

AC/DC CONVERTER 30V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VOF-225A-30

Obsolete

CUI Inc.

AC/DC CONVERTER 30V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-225A-30

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, EN, UL, TUV, IEC, FCC
Current - Output 1	4 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	225 W, 120 W
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	30 V

VOF-225 Series

Part	Number of Outputs	Type	Voltage - Output 1	Efficiency	Mounting Type	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Approval Agency	Standard Number	Voltage - Isolation	Applications	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)
CUI Inc. VOF-225A-15	1	Open Frame	15 V	92 %	Chassis Mount	120 W 225 W	264 VAC	80 VAC	8 A	CB Scheme EN FCC IEC SIQ TUV UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VOF-225-36	1	Open Frame	36 V	90 %	Chassis Mount	135 W	277 VAC	90 VAC	3.75 A	CB Scheme CSA EN FCC IEC SIQ TUV UL	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input	-20 °C	70 °C	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	225 W
CUI Inc. VOF-225-48	1	Open Frame	48 V	91 %	Chassis Mount	135 W	277 VAC	90 VAC	2.81 A	CB Scheme CSA EN FCC IEC SIQ TUV UL	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input	-20 °C	70 °C	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	225 W
CUI Inc. VOF-225-12	1	Open Frame	12 V	88 %	Chassis Mount	135 W	277 VAC	90 VAC	11.25 A	CB Scheme CSA EN FCC IEC SIQ TUV UL	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input	-20 °C	70 °C	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	225 W
CUI Inc. VOF-225A-30	1	Open Frame	30 V	93 %	Chassis Mount	120 W 225 W	264 VAC	80 VAC	4 A	CB Scheme EN FCC IEC SIQ TUV UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VOF-225A-24	1	Open Frame	24 V	93 %	Chassis Mount	120 W 225 W	264 VAC	80 VAC	5 A	CB Scheme EN FCC IEC SIQ TUV UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3000 V	ITE (Commercial)	Adjustable Output Standby Output Universal Input
CUI Inc. VOF-225-15	1	Open Frame	15 V	90 %	Chassis Mount	135 W	277 VAC	90 VAC	9 A	CB Scheme CSA EN FCC IEC SIQ TUV UL	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input	-20 °C	70 °C	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	225 W
CUI Inc. VOF-225A-48	1	Open Frame	48 V	94 %	Chassis Mount	120 W 225 W	264 VAC	80 VAC	2.5 A	CB Scheme EN FCC IEC SIQ TUV UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3000 V	ITE (Commercial)	Adjustable Output Standby Output Universal Input
CUI Inc. VOF-225A-48-1	1	Open Frame	48 V	94 %	Chassis Mount	120 W 225 W	264 VAC	80 VAC	2.5 A	CB Scheme EN FCC IEC SIQ TUV UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3000 V	ITE (Commercial)	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VOF-225A-12	1	Open Frame	12 V	92 %	Chassis Mount	120 W 225 W	264 VAC	80 VAC	10 A	CB Scheme EN FCC IEC SIQ TUV UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3000 V	ITE (Commercial)	Adjustable Output Standby Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VOF-225 Series

Open Frame AC DC Converters 1 Output 30V 80 ~ 264 VAC Input
