S8411-45R
ActiveHarwin Inc.
BATTERY HOLDER, COIN CELL - 20MM X 1, PCB
Deep-Dive with AI
Search across all available documentation for this part.
S8411-45R
ActiveHarwin Inc.
BATTERY HOLDER, COIN CELL - 20MM X 1, PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S8411-45R |
|---|---|
| Battery Cell Size | 12 mm |
| Battery Cell Size | Coin |
| Battery Series | 1220 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board [z] | 0.167 in |
| Height Above Board [z] | 4.25 mm |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.69 | |
| 10 | $ 1.42 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 1.69 | ||
| 10 | $ 1.42 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.08 | |||
| Tape & Reel (TR) | 500 | $ 1.01 | ||
| 1000 | $ 0.95 | |||
| 2500 | $ 0.86 | |||
| 5000 | $ 0.79 | |||
Description
General part information
S8411-4 Series

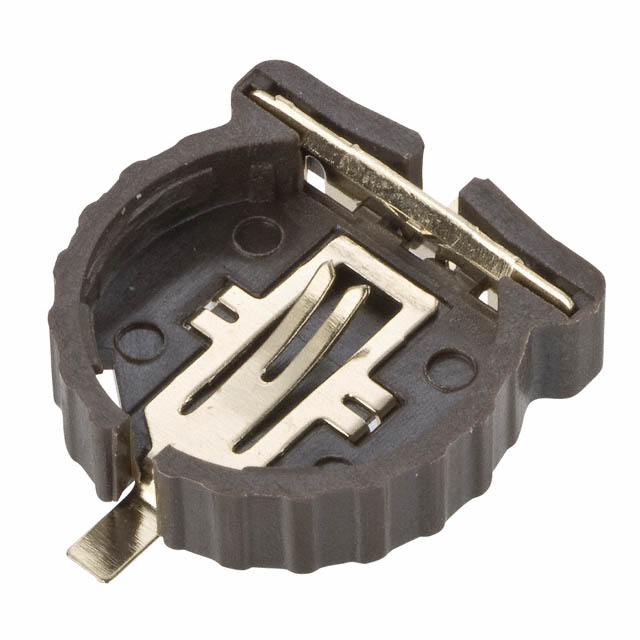

The S8411-45R is a surface mount Coin-cell Battery Holder/Retainer with PPS housing and phosphor bronze contact base with gold-plated finish. Low profile design available with dual independent contact points for enhanced electrical reliability.
