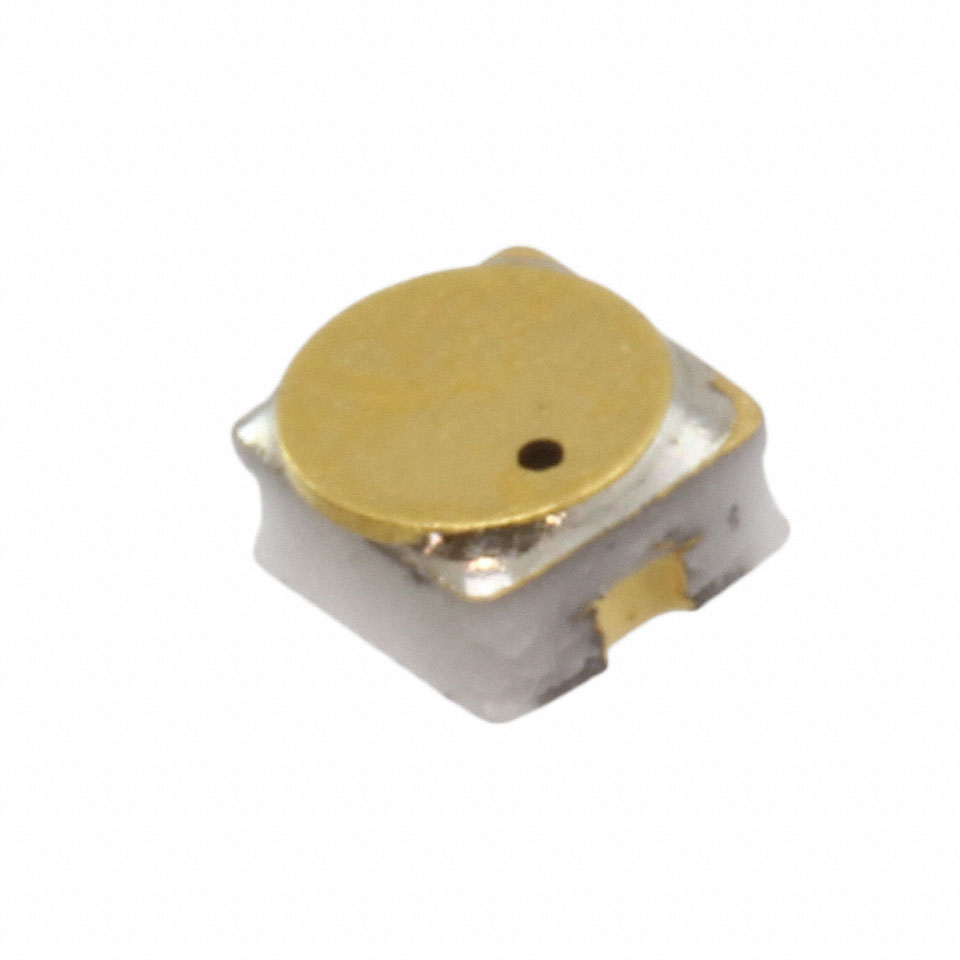

MA46H202-1056
ActiveMACOM Technology Solutions
DIODE VARACTOR DUAL GAAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA46H202-1056
ActiveMACOM Technology Solutions
DIODE VARACTOR DUAL GAAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA46H202-1056 |
|---|---|
| Capacitance @ Vr, F | 3.3 pF |
| Capacitance Ratio | 5.6 |
| Capacitance Ratio Condition | C2/C20 |
| Diode Type | Single |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | 2-SMD |
| Q @ Vr, F | 2000 |
| Voltage - Peak Reverse (Max) [Max] | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.33 | |
| 10 | $ 31.66 | |||
| 50 | $ 30.24 | |||
| 100 | $ 27.03 | |||
| 250 | $ 25.79 | |||
Description
General part information
MA46H202 Series
Varactors Single 22 V Surface Mount
