ME240A2851N01

Active

SL POWER / Advanced Energy

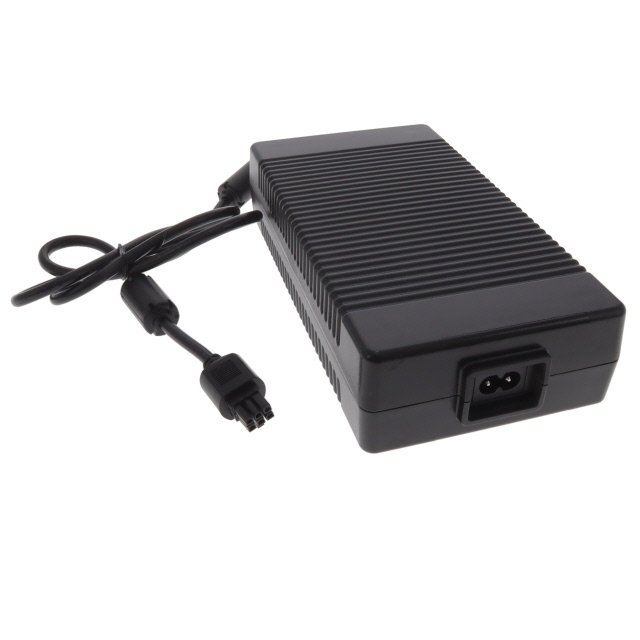

AC/DC DESKTOP ADAPTER 28V 241W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 28V 241W

Technical Specifications

Parameters and characteristics for this part

Specification	ME240A2851N01

Applications	Medical
Approval Agency	CE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	8.6 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Rectangular, 6 Position
Power (Watts)	241 W
Region Utilized	International
Size / Dimension	1.85 in, 4.25 in, 8.43 in
Size / Dimension	47 mm, 108 mm, 214 mm
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	28 V
Weight	700 g
Weight	1.543 lb

Part	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Voltage - Output	Form	Region Utilized	Output Connector	Cord Length	Cord Length	Size / Dimension	Size / Dimension	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Efficiency	Input Type	Approval Agency	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Weight	Weight
SL POWER / Advanced Energy ME240A2851N01	8.6 A	150 mW	28 V	Desktop (Class II)	International	Rectangular 6 Position	1 m	39.4 "	1.85 in 4.25 in 8.43 in	47 mm 108 mm 214 mm	241 W	50 °C	-20 C	IEC 320-C8	CoC Tier 2 Level VI	Cord	CE	Medical	240 VAC	100 VAC	700 g	1.543 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

28V 241 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
