PT07A-8-4P

Active

Amphenol Industrial Operations

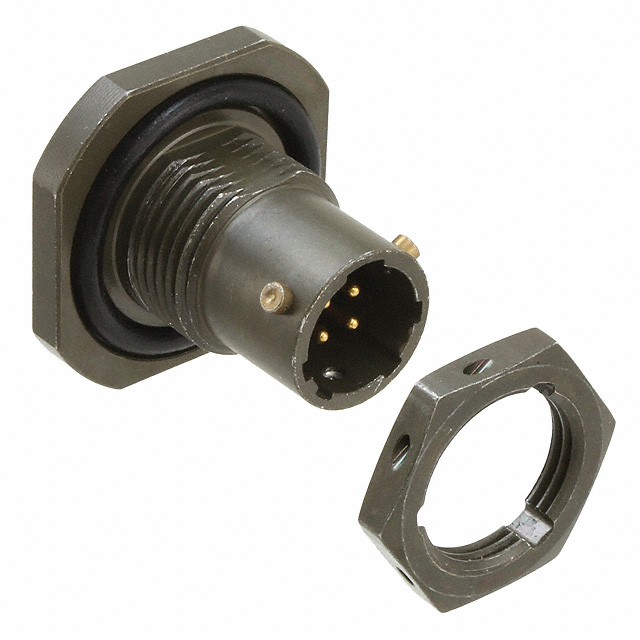

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT07A-8-4P

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT07A-8-4P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-4
Shielding	Unshielded

PT07A Series

Part	Contact Material	Insert Material	Number of Positions	Shielding	Applications	Fastening Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Orientation	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Primary Material	Color	Shell Material	Shell Size - Insert	Contact Finish - Mating	Shell Finish	Backshell Material, Plating
Amphenol Industrial Operations PT07A-24-61P(113)	Copper Alloy	Neoprene	61	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Male Pins Receptacle	61	24
Amphenol Industrial Operations PT07A-14-19SPCT	Copper Alloy	Neoprene	19	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Receptacle Female Sockets			19	14
Amphenol Industrial Operations PT07A-8-3PW	Copper Alloy	Neoprene		Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	W	Male Pins Receptacle					Metal	Olive Drab	Aluminum	8-3	Gold	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations PT07A16-26P-027	Copper Alloy	Neoprene	26	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Male Pins Receptacle	26	16			Metal	Black	Aluminum		Gold	Black Zinc Cobalt	Aluminum Black Zinc Cobalt
Amphenol Industrial Operations PT07A-10-98SX	Copper Alloy	Neoprene	6	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	X	Receptacle Female Sockets	98	10			Metal	Olive Drab	Aluminum		Gold	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations PT07A-8- 4P	Copper Alloy	Neoprene	4	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Male Pins Receptacle					Metal	Olive Drab	Aluminum	8-4	Gold	Olive Drab Chromate over Cadmium	Aluminum Olive Drab Cadmium
Amphenol Industrial Operations PT07A-8-3SX	Copper Alloy	Neoprene		Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	X	Receptacle Female Sockets					Metal	Olive Drab	Aluminum	8-3	Gold	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations PT07A-8-2S	Copper Alloy	Neoprene	2	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Receptacle Female Sockets					Metal	Olive Drab	Aluminum	8-2	Gold	Olive Drab Chromate over Cadmium	Aluminum Olive Drab Cadmium
Amphenol Industrial Operations PT07A-8-4P	Copper Alloy	Neoprene	4	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Male Pins Receptacle					Metal	Olive Drab	Aluminum	8-4	Gold	Olive Drab Chromate over Cadmium	Aluminum Olive Drab Cadmium
Amphenol Industrial Operations PT07A-14-15S	Copper Alloy	Neoprene	15	Unshielded	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Bulkhead - Front Side Nut	-55 °C	125 °C	MIL-DTL-26482 Series I	N	Receptacle Female Sockets	15	14			Metal	Olive Drab	Aluminum		Gold	Olive Drab Chromate over Cadmium	Aluminum Olive Drab Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.32
		10	$ 27.42
		25	$ 26.24
		50	$ 25.39
		100	$ 24.55
		250	$ 23.19

Description

General part information

PT07A Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
