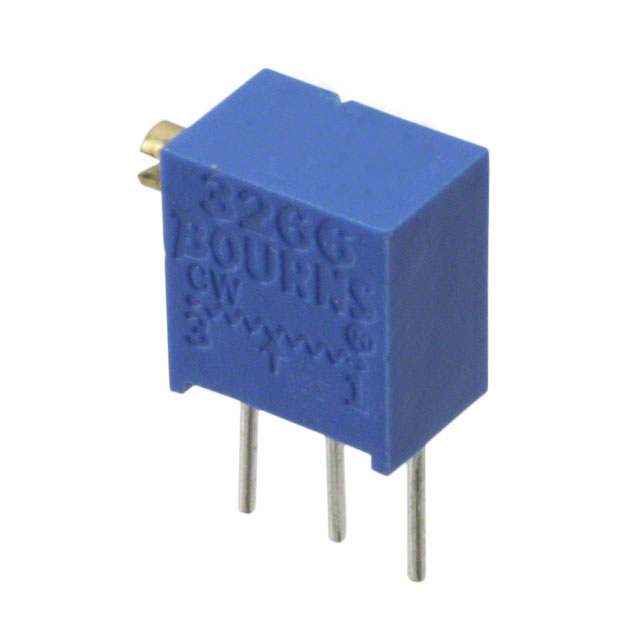

3266Z-1-101

Active

Bourns Inc.

TRIMMER 100OHM 0.25W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3266Z-1-101

Active

Bourns Inc.

TRIMMER 100OHM 0.25W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3266Z-1-101

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	100 Ohms
Resistive Material	Cermet
Size / Dimension [x]	6.35 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	0.17 in
Size / Dimension [y]	4.32 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3266Z Series

Part	Power (Watts)	Power (Watts)	Mounting Type	Resistive Material	Tolerance	Temperature Coefficient	Adjustment Type	Number of Turns	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance
Bourns Inc. 3266Z-1-101	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	100 Ohms
Bourns Inc. 3266Z-1-100LF	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	10 Ohms
Bourns Inc. 3266Z-1-103LF	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	10000 Ohms
Bourns Inc. 3266Z-1-500	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	50 Ohms
Bourns Inc. 3266Z-1-501	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	500 Ohms
Bourns Inc. 3266Z-1-202LF	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	2 kOhms
Bourns Inc. 3266Z-1-103	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	10000 Ohms
Bourns Inc. 3266Z-1-504	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm
Bourns Inc. 3266Z-1-254LF	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	250 kOhms
Bourns Inc. 3266Z-1-503	0.25 W	250 mW	Through Hole	Cermet	10 %	100 ppm/°C	Side Adjustment	12	PC Pins	0.17 in	6.35 mm	0.25 "	4.32 mm	50 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 4.14

Description

General part information

3266Z Series

100 Ohms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
