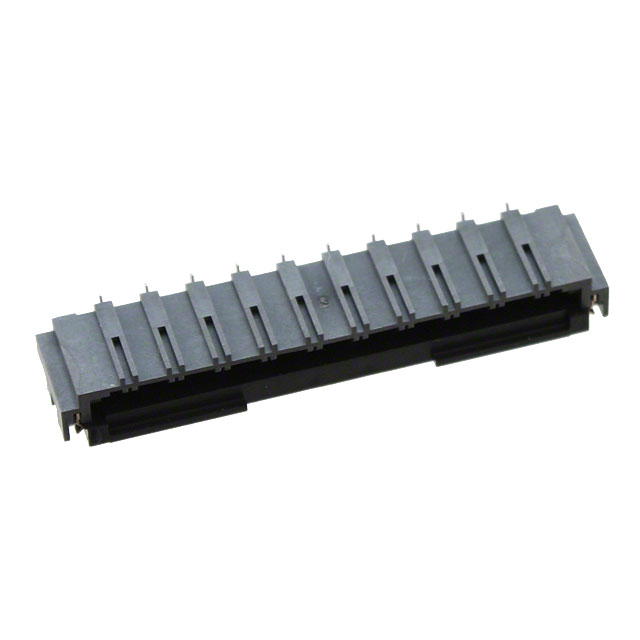

FH48-50S-0.5SV
ActiveHirose Electric USA, Inc.
CONN FFC VERT 50POS 0.5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
FH48-50S-0.5SV
ActiveHirose Electric USA, Inc.
CONN FFC VERT 50POS 0.5MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FH48-50S-0.5SV |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Tabbed |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board [z] | 0.243 " |
| Height Above Board [z] | 6.18 mm |
| Housing Color | Gray |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.84 | |
| 10 | $ 3.48 | |||
| 25 | $ 3.30 | |||
| 50 | $ 3.22 | |||
| 100 | $ 3.07 | |||
| 250 | $ 2.69 | |||
| 500 | $ 2.61 | |||
| Digi-Reel® | 1 | $ 3.84 | ||
| 10 | $ 3.48 | |||
| 25 | $ 3.30 | |||
| 50 | $ 3.22 | |||
| 100 | $ 3.07 | |||
| 250 | $ 2.69 | |||
| 500 | $ 2.61 | |||
| Tape & Reel (TR) | 1000 | $ 2.15 | ||
| 2000 | $ 2.07 | |||
| 3000 | $ 2.00 | |||
| 5000 | $ 1.93 | |||
Description
General part information
FH48 Series
50 Position FFC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
