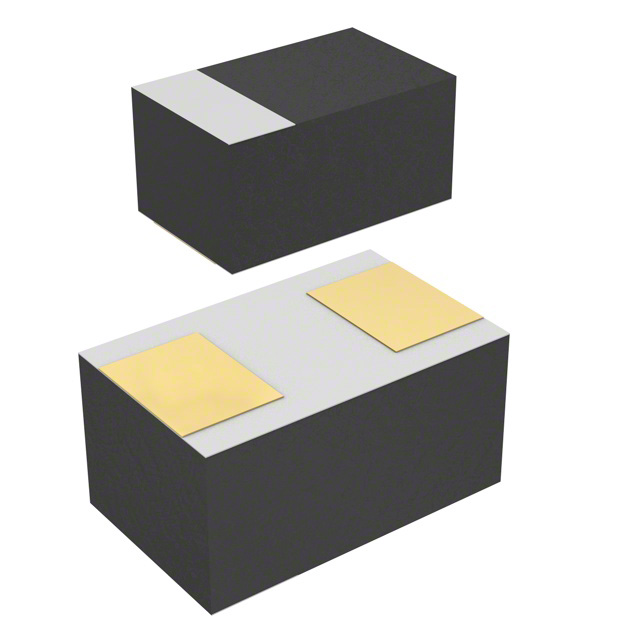

F381A106MMAAH1

Obsolete

Kyocera AVX

CAPACITOR: TANTALUM-POLYMER; 10UF; 10VDC; M; 0603; SMD; ESR: 300MΩ

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CAPACITOR: TANTALUM-POLYMER; 10UF; 10VDC; M; 0603; SMD; ESR: 300MΩ

Technical Specifications

Parameters and characteristics for this part

Specification	F381A106MMAAH1

Capacitance	10 µF
ESR (Equivalent Series Resistance)	300 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	M
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.033 in
Size / Dimension [y]	0.85 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Type	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Manufacturer Size Code	Features
Kyocera AVX F381A106MMAAH1	Molded	0603 (1608 Metric)	1.6 mm	0.063 in	0.033 in	0.85 mm	20 %	10 V	0.035 "	0.9 mm	105 ░C	-55 °C	10 µF	1000 Hrs	300 mOhm	Surface Mount	M	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Molded Tantalum Polymer Capacitor 10 V 0603 (1608 Metric) 300mOhm @ 100kHz
