19229 010250

Active

Belden Inc.

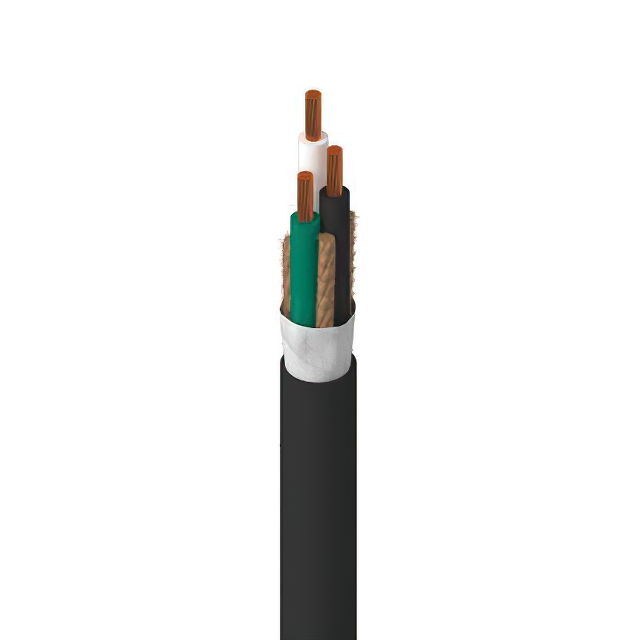

CABLE 3COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19229 010250

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.33 mm
Jacket (Insulation) Diameter [diameter]	0.328 "
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	1.118 mm
Jacket (Insulation) Thickness	0.044 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Ratings	UL Style SJO
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	18 AWG

Part	Number of Conductors	Length	Length	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Usage	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Jacket (Insulation) Material	Cable Type
Belden Inc. 19229 010250	3	3000 "	76.2 m	Black	18 AWG	16	30 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Cord and Cordset	300 V	8.33 mm	0.328 "	Oil Resistant	Copper Bare	1.118 mm	0.044 in	UL Style SJO	Rubber	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 250.0' (76.2m)
