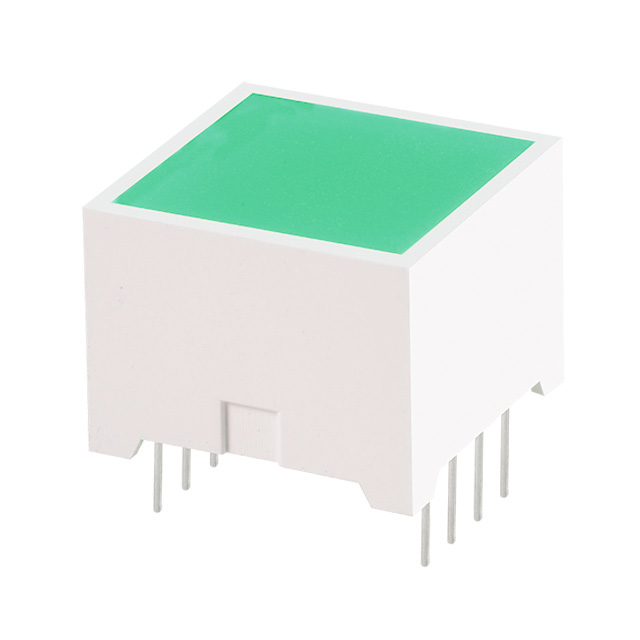

DE4GD

Active

Kingbright

LED LGT BAR 15MM SQ GREEN

Search across all available documentation for this part.

Active

Kingbright

LED LGT BAR 15MM SQ GREEN

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Color	Configuration	Lens Size	Voltage Rating	Wavelength - Peak	Lens Style	Mounting Type	Current	Lens Type
Kingbright DE4SYKD	380 mcd	Yellow	Bar - Single DIP	15 mm	2 V	590 nm	Square with Flat Top	Through Hole	175 mA	Diffused Tinted
Kingbright DE4CGKD	77 mcd	Green	Bar - Single DIP	15 mm	2.1 V		Square with Flat Top	Through Hole	150 mA	Diffused Tinted
Kingbright DE4SGD	64 mcd	Green	Bar - Single DIP	15 mm		565 nm	Square with Flat Top	Through Hole	25 mA	Diffused Tinted
Kingbright DE4GD	36 mcd	Green	Bar - Single DIP	15 mm		565 nm	Square with Flat Top	Through Hole	25 mA	Diffused Tinted
Kingbright DE4SRD	340 mcd	Red	Bar - Single DIP	15 mm	1.85 V	660 nm	Square with Flat Top	Through Hole	30 mA	Diffused Tinted
Kingbright DE4ID	33 mcd	Red	Bar - Single DIP	15 mm	2 V	627 nm	Square with Flat Top	Through Hole	30 mA	Diffused Tinted
Kingbright DE4SURKD	250 mcd	Red	Bar - Single DIP	15 mm	1.95 V	645 nm	Square with Flat Top	Through Hole		Diffused Tinted
Kingbright DE4YD	35 mcd	Yellow	Bar - Single DIP	15 mm	2.1 V	590 nm	Square with Flat Top	Through Hole	30 mA	Diffused Tinted

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Green Diffused, Tinted 2.2V 25mA Square with Flat Top 15.00mm Through Hole

Technical documentation and resources
