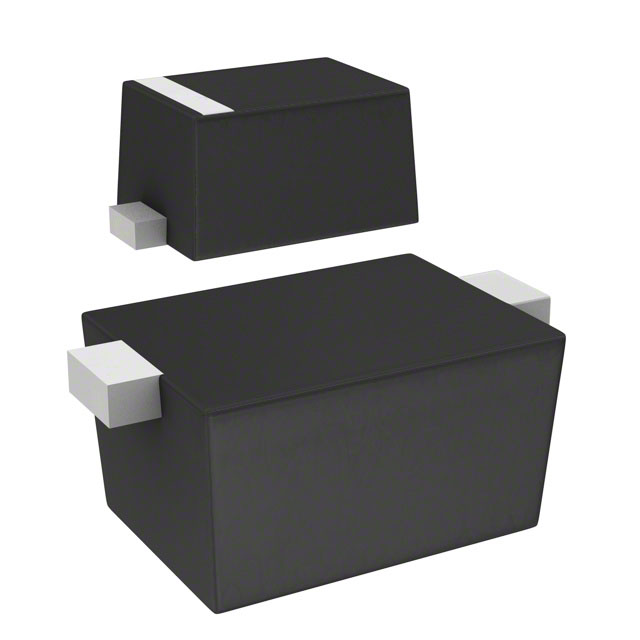

1SS413,L3M
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 20V 50MA FSC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SS413,L3M
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 20V 50MA FSC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS413,L3M |
|---|---|
| Capacitance @ Vr, F | 3.9 pF |
| Current - Average Rectified (Io) | 50 mA |
| Current - Reverse Leakage @ Vr | 500 nA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | 2-SMD, Flat Leads |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | fSC |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.22 | |
| 10 | $ 0.14 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2000 | $ 0.05 | |||
| 5000 | $ 0.04 | |||
| Digi-ReelÛ | 1 | $ 0.22 | ||
| 10 | $ 0.14 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2000 | $ 0.05 | |||
| 5000 | $ 0.04 | |||
| Tape & Reel (TR) | 10000 | $ 0.04 | ||
| 20000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 50000 | $ 0.03 | |||
| 70000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 250000 | $ 0.03 | |||
Description
General part information
1SS413 Series
Diode 20 V 50mA Surface Mount fSC
