857-024-547-103
ActiveEDAC Inc.

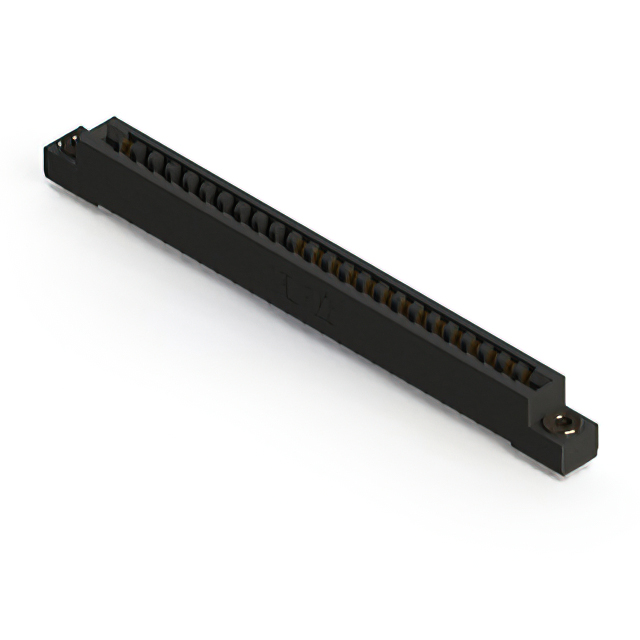

CONN EDGE SGL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-024-547-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-024-547-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
857-024 Series
...
| Part | Read Out | Pitch [x] | Pitch [x] | Contact Finish | Mounting Type | Number of Rows | Color | Gender | Termination | Material - Insulation | Termination Rows | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Number of Positions/Bay/Row [custom] | Contact Type | Contact Material | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 0.156 in | 3.96 mm | Tin | Through Hole | 2 | Black | Female | Wire Wrap | Polyphenylene Sulfide (PPS) | 2 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 12 | Semi Bellows | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | |||||
EDAC Inc. | Dual | 0.156 in | 3.96 mm | Gold | Through Hole Right Angle | 2 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 1 | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 24 | Semi Bellows | Copper Alloy | Floating Bobbin Flush Mount | 125 °C | -40 °C | 0.116 in | 2.95 mm | 10 Áin | 0.25 Ám | |
EDAC Inc. | Dual | 0.156 in | 3.96 mm | Gold | Through Hole Right Angle | 2 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 1 | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 24 | Semi Bellows | Copper Alloy | Floating Bobbin Flush Mount | 125 °C | -40 °C | 0.116 in | 2.95 mm | 10 Áin | 0.25 Ám | |
EDAC Inc. | Single | 0.156 in | 3.96 mm | Gold | Through Hole | 1 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 1 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 24 | Semi Bellows | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Single | 0.156 in | 3.96 mm | Gold | Through Hole | 1 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 1 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 24 | Semi Bellows | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Single | 0.156 in | 3.96 mm | Tin | Through Hole | 1 | Black | Female | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 24 | Semi Bellows | Copper Alloy | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 0.156 in | 3.96 mm | |||
EDAC Inc. | Single | 0.156 in | 3.96 mm | Gold | Through Hole | 1 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 1 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 24 | Semi Bellows | Copper Alloy | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 0.128 " | 3.25 mm | 10 Áin | 0.25 Ám | |
EDAC Inc. | Single | 0.156 in | 3.96 mm | Gold | Through Hole | 1 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 1 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 24 | Semi Bellows | Copper Alloy | 125 °C | -40 °C | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Dual | 0.156 in | 3.96 mm | Gold | Board Edge Straddle Mount | 2 | Black | Female | Solder | Polyphenylene Sulfide (PPS) | 2 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 12 | Semi Bellows | Copper Alloy | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 0.128 " | 3.25 mm | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | Single | 0.156 in | 3.96 mm | Gold | Through Hole | 1 | Black | Female | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 24 | Semi Bellows | Copper Alloy | Floating Bobbin Flush Mount | 125 °C | -40 °C | 0.116 in | 2.95 mm | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
