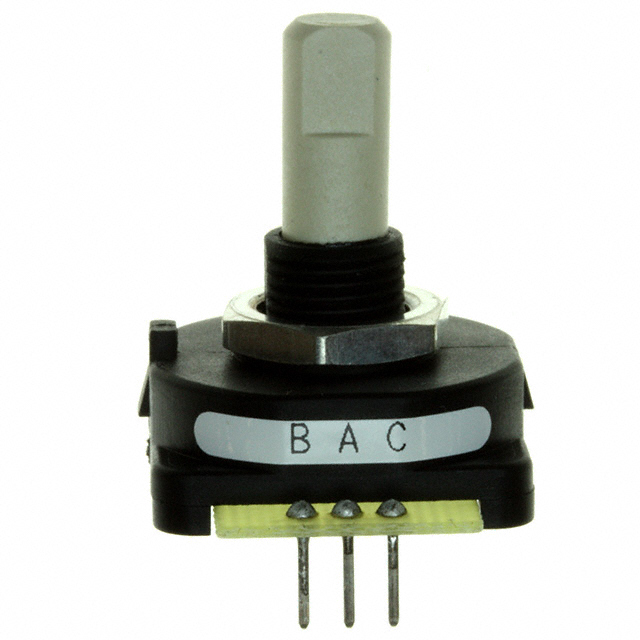

25LB45-Q
ActiveGrayhill Inc.
ROTARY ENCODER MECHANICAL 8PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
25LB45-Q
ActiveGrayhill Inc.
ROTARY ENCODER MECHANICAL 8PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25LB45-Q |
|---|---|
| Actuator Type | 0.25 |
| Actuator Type | Flatted End |
| Built in Switch | False |
| Detent | True |
| Encoder Type | Mechanical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 8 |
| Rotational Life (Cycles Min) [Min] | 100K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.38 | |
| 5 | $ 24.37 | |||
| 10 | $ 22.84 | |||
| 25 | $ 20.93 | |||
| 50 | $ 19.60 | |||
| 100 | $ 18.39 | |||
| 250 | $ 16.86 | |||
| 500 | $ 16.54 | |||
Description
General part information
25LB45 Series
Rotary Encoder Mechanical 8 Quadrature (Incremental) Vertical
