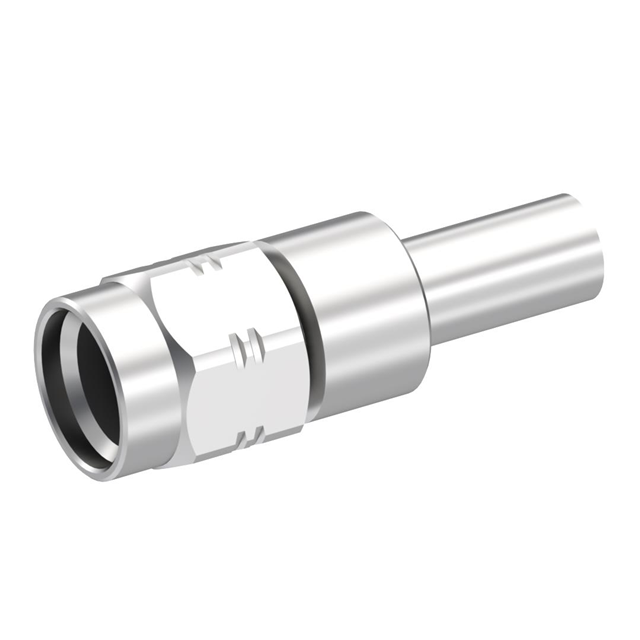

R300124040

Active

Radiall USA, Inc.

RP SMA / STRAIGHT PLUG CRIMP TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RP SMA / STRAIGHT PLUG CRIMP TYP

Technical Specifications

Parameters and characteristics for this part

Specification	R300124040

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-316 Double Braid
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Contact Termination	Frequency - Max [Max]	Body Material	Voltage Rating	Housing Color	Number of Ports	Center Contact Material	Connector Style	Center Contact Plating	Mounting Feature	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Finish	Cable Group	Shield Termination	Mating Cycles	Mounting Type
Radiall USA, Inc. R300124240W	Crimp	12.4 GHz	Brass	250 VDC	Silver	1	Brass	RP-SMA	Gold	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	Jack Male Pin	-65 ░C	165 °C	50 Ohms	White Bronze	316 RG-188	Crimp	500
Radiall USA, Inc. R300124040	Crimp	12.4 GHz	Brass	250 VDC	Silver	1	Beryllium Copper	RP-SMA	Gold		Polytetrafluoroethylene (PTFE)	Female Socket Plug	-65 ░C	165 °C	50 Ohms	White Bronze	RG-316 Double Braid	Crimp		Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.28

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
