51P22-01-2-08N

Active

Grayhill Inc.

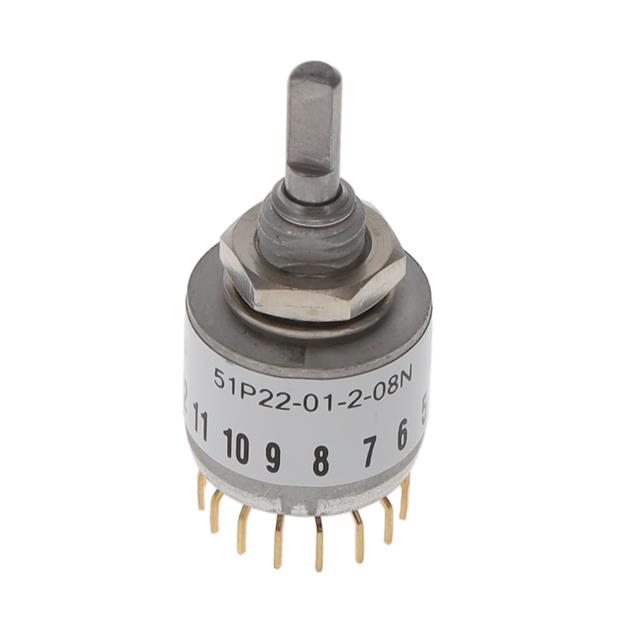

SERIES 51 ROTARY SWITCH, PC MOUNT, 22.5 , 1 DECK, 2 POLE/DECK, 8 POSITIONS/POLE, NON-SHORTING

Deep-Dive with AI

Search across all available documentation for this part.

51P22-01-2-08N

Active

Grayhill Inc.

SERIES 51 ROTARY SWITCH, PC MOUNT, 22.5 , 1 DECK, 2 POLE/DECK, 8 POSITIONS/POLE, NON-SHORTING

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51P22-01-2-08N

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	22.5 °
Circuit per Deck	DP8T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	13.64 mm
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions	8
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

51P22 Series

Part	Contact Finish	Number of Positions	Actuator Type [diameter]	Actuator Type	Angle of Throw	Depth Behind Panel [z]	Circuit per Deck	Index Stops	Mounting Type	Termination Style	Current Rating (Amps)	Number of Decks [custom]	Contact Timing	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Number of Poles per Deck	Actuator Length [x]	Voltage Rating - AC	Circuit per Deck [custom]
Grayhill Inc. 51P22-01-1-02N	Gold	2	3.17 mm	Flatted	22.5 °	13.64 mm	SPDT	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Non-Shorting	28 V	6.45 mm	1	9.53 mm	115 V
Grayhill Inc. 51P22-01-1-05S	Gold		3.17 mm	Flatted	22.5 °	13.64 mm	SP5T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Shorting	28 V	6.45 mm	1	9.53 mm	115 V
Grayhill Inc. 51P22-01-1-06N	Gold	6	3.17 mm	Flatted	22.5 °	13.64 mm	SP6T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Non-Shorting	28 V		1	9.53 mm	115 V
Grayhill Inc. 51P22-01-1-10S	Gold	10	3.17 mm	Flatted	22.5 °	13.64 mm	SP10T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Shorting	28 V	6.45 mm	1	9.53 mm	115 V
Grayhill Inc. 51P22-01-1-06S	Gold	6	3.17 mm	Flatted	22.5 °	13.64 mm	SP6T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Shorting	28 V		1	9.53 mm	115 V
Grayhill Inc. 51P22-01-2-04N	Gold	4	3.17 mm	Flatted	22.5 °	13.64 mm	DP4T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Non-Shorting	28 V	6.45 mm	2	9.53 mm	115 V
Grayhill Inc. 51P22-01-2-06N	Gold	6	3.17 mm	Flatted	22.5 °	13.64 mm		Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Non-Shorting	28 V		2	9.53 mm	115 V	DP6T
Grayhill Inc. 51P22-01-1-15N	Gold	15	3.17 mm	Flatted	22.5 °	13.64 mm	SP15T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Non-Shorting	28 V	6.45 mm	1	9.53 mm	115 V
Grayhill Inc. 51P22-01-2-08N	Gold	8	3.17 mm	Flatted	22.5 °	13.64 mm	DP8T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Non-Shorting	28 V	6.45 mm	2	9.53 mm	115 V
Grayhill Inc. 51P22-01-2-08S	Gold	8	3.17 mm	Flatted	22.5 °	13.64 mm	DP8T	Fixed	Panel Mount Through Hole	PC Pin	150 mA 200 mA	1	Shorting	28 V	6.45 mm	2	9.53 mm	115 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.06
		5	$ 37.64
		10	$ 35.33
		25	$ 32.38
		50	$ 30.28
		100	$ 28.39
		250	$ 27.34
Newark	Each	1	$ 47.06
		100	$ 38.54
		250	$ 35.12

Description

General part information

51P22 Series

Rotary Switch 8 Position DP8T 150mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
