Technical Specifications
Parameters and characteristics for this part
| Specification | 0234001.MXEP |
|---|---|
| Approval Agency | UL, CE, PSE, K-Mark, CSA |
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 1 A |
| DC Cold Resistance | 0.175 Ohms |
| Melting I²t | 1.975 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Medium Blow |
| Size / Dimension [diameter] | 5.8 mm |
| Size / Dimension [diameter] | 0.228 in |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.886 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

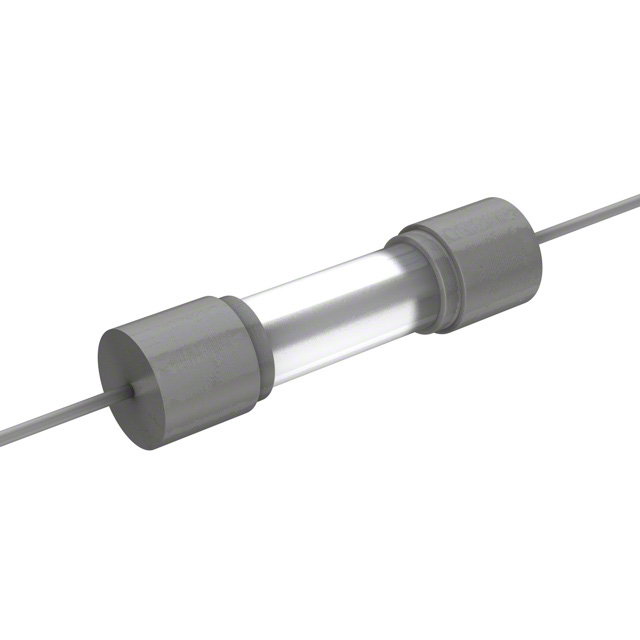

0234001 Series
5x20mm meduim- acting glass body fuse designed to UL specification.
