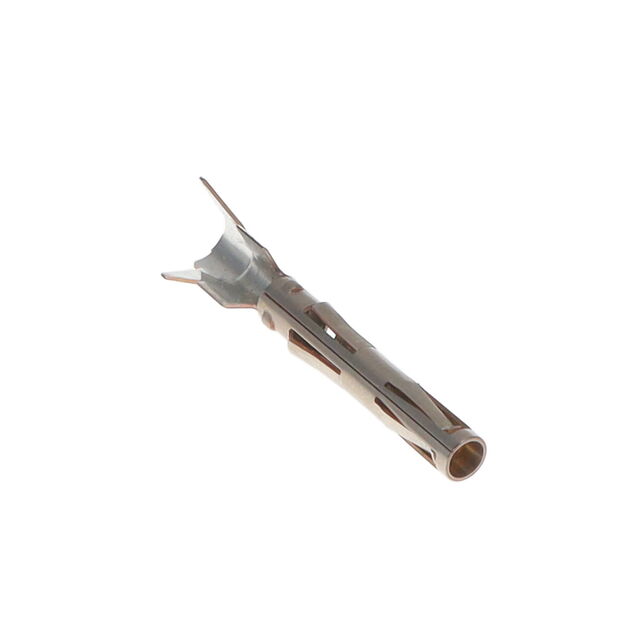

KN01S15HGP1
ActiveJAE Electronics
CONN SOCKET CONTACT #12 SIZE, AW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KN01S15HGP1 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 12 AWG |
KN01S Series
| Part | Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Pin or Socket | Wire Gauge |
|---|---|---|---|---|---|---|---|
JAE Electronics | Stamped | Gold | 16 AWG | 20 AWG | Crimp | Socket | |
JAE Electronics | Stamped | Gold | 22 AWG | 26 AWG | Crimp | Socket | |
JAE Electronics | Stamped | Gold | 12 AWG | 14 AWG | Crimp | Socket | |
JAE Electronics | Stamped | Silver | Crimp | Socket | 10 AWG | ||
JAE Electronics | Stamped | Gold | 17.5 AWG | 22 AWG | Crimp | Socket | |
JAE Electronics | Stamped | Gold | 22 AWG | 26 AWG | Crimp | Socket | |
JAE Electronics | Stamped | Gold | 22 AWG | 24 AWG | Crimp | Socket | |
JAE Electronics | Stamped | Gold | 14 AWG | 17 AWG | Crimp | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| Tape & Reel (TR) | 1500 | $ 0.19 | ||
Description
General part information
KN01S Series
Contact Crimp Socket 12-14 AWG Gold
