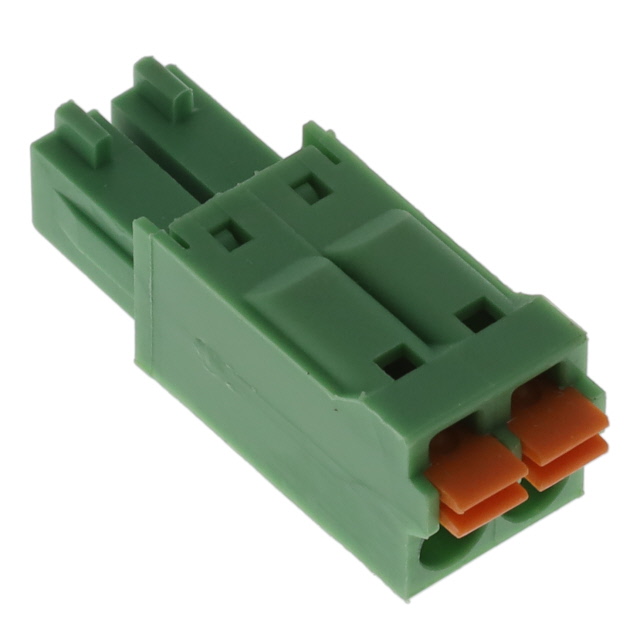

KD0210500000G

Active

Amphenol Anytek

TERM BLOCK PLUG 2POS STR 3.5MM

Search across all available documentation for this part.

Active

Amphenol Anytek

TERM BLOCK PLUG 2POS STR 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	KD0210500000G

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	5.5 A
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - UL	160 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length [Max]	10 mm
Wire Strip Length [Min]	9 mm

Part	Wire Strip Length [Min]	Wire Strip Length [Max]	Termination Style	Color	Number of Levels	Number of Positions	Type	Pitch [x]	Pitch [x]	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Voltage - UL	Contact Mating Finish	Material Flammability Rating	Current - UL	Positions Per Level	Mounting Type	Features
Amphenol Anytek KD0230500000G	9 mm	10 mm	Push-In Spring Screwless - Leg Spring	Green	1	2	Plug Female Sockets	0.15 in	3.81 mm	Phosphor Bronze	24 AWG	16 AWG	-40 °C	115 °C	Thermoplastic	300 V	Tin	UL94 V-0	5.5 A	2	Free Hanging (In-Line)
Amphenol Anytek KD0210500000G	9 mm	10 mm	Push-In Spring Screwless - Leg Spring	Green	1	2	Plug Female Sockets	0.138 in	3.5 mm	Phosphor Bronze	24 AWG	16 AWG	-40 °C	115 °C	Thermoplastic	160 V	Tin	UL94 V-0	5.5 A	2	Free Hanging (In-Line)
Amphenol Anytek KD0210510000G	9 mm	10 mm	Push-In Spring Screwless - Leg Spring	Green	1	2	Plug Female Sockets	0.138 in	3.5 mm	Phosphor Bronze	24 AWG	16 AWG	-40 °C	115 °C	Thermoplastic	160 V	Tin	UL94 V-0	5.5 A	2	Free Hanging (In-Line)	Mating Flange
Amphenol Anytek KD0210520000G	9 mm	10 mm	Push-In Spring Screwless - Leg Spring	Green	1	2	Plug Female Sockets	0.138 in	3.5 mm	Phosphor Bronze	24 AWG	16 AWG	-40 °C	115 °C	Thermoplastic	160 V	Tin	UL94 V-0	5.5 A	2	Free Hanging (In-Line)	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
