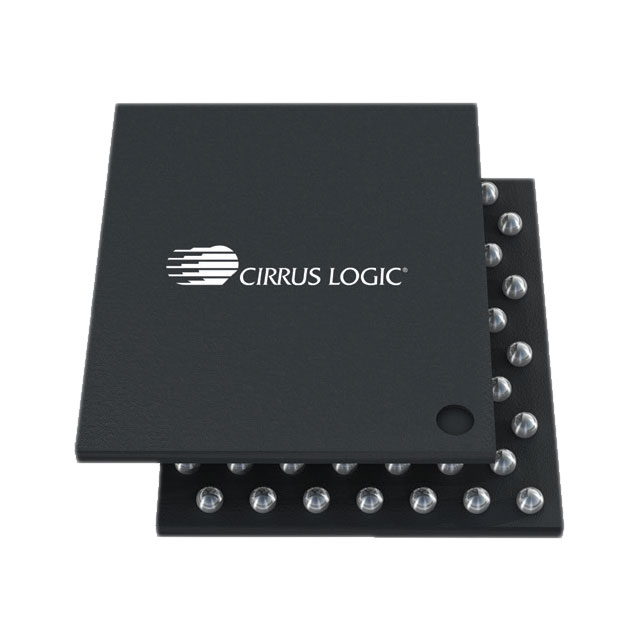

CS47L15-CWZR
ObsoleteCirrus Logic Inc.
IC AUDIO CODEC 24 BIT 70-WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCS47L15 Product Overview
CS47L15-CWZR
ObsoleteCirrus Logic Inc.
IC AUDIO CODEC 24 BIT 70-WLCSP
Deep-Dive with AI
DocumentsCS47L15 Product Overview
Technical Specifications
Parameters and characteristics for this part
| Specification | CS47L15-CWZR |
|---|---|
| Data Interface | SPI |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 70-UFBGA, WLCSP |
| Resolution (Bits) | 24 b |
| Sigma Delta | True |
| Supplier Device Package | 70-WLCSP |
| Supplier Device Package [x] | 3.01 |
| Supplier Device Package [y] | 3.51 |
| Type | Audio |
| Voltage - Supply, Analog [Max] | 1.89 V |
| Voltage - Supply, Analog [Min] | 1.71 V |
| Voltage - Supply, Digital [Max] | 1.26 V |
| Voltage - Supply, Digital [Min] | 1.14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.01 | |
| 10 | $ 9.95 | |||
| 25 | $ 9.48 | |||
| 100 | $ 8.23 | |||
| Digi-Reel® | 1 | $ 11.01 | ||
| 10 | $ 9.95 | |||
| 25 | $ 9.48 | |||
| 100 | $ 8.23 | |||
Description
General part information
CS47L15 Series
Audio Interface 24 b SPI 70-WLCSP (3.01x3.51)
