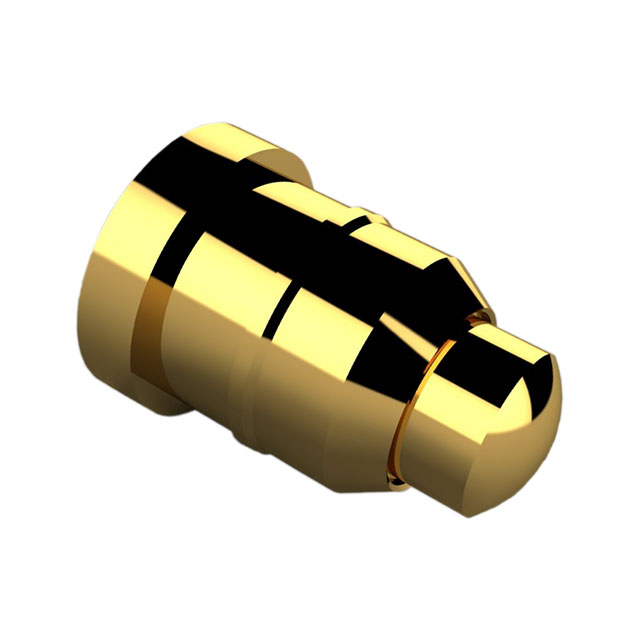

90173-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
90173-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 90173-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] [z] | 0.1 in |
| Maximum Working Height [Max] [z] | 2.54 mm |
| Minimum Working Height | 1.95 mm |
| Minimum Working Height [Min] | 0.077 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 40.79 gf |
| Operating Force - Mid Compression | 86.68 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.069 in |
| Pad Layout Dimension [diameter] | 1.76 mm |
| Plunger Size [diameter] | 1 mm |
| Plunger Size [diameter] | 0.039 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.80 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.44 | |||
| 2500 | $ 0.40 | |||
Description
General part information
90173 Series
Contact Spring Surface Mount
