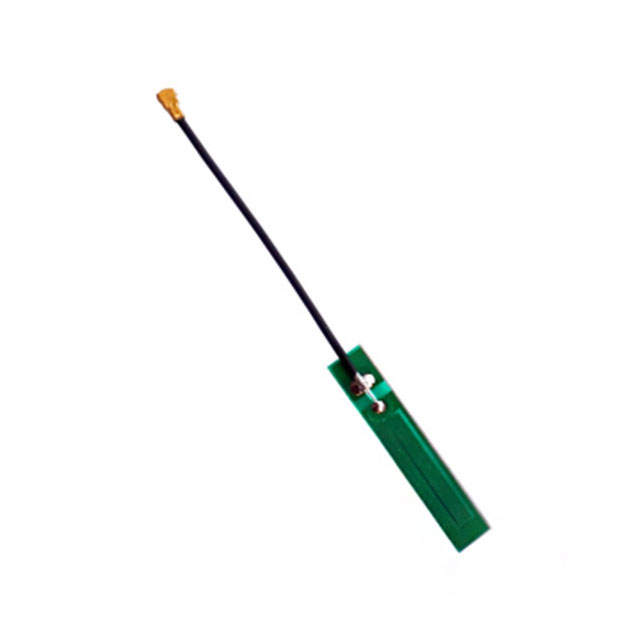

ECHO35/0.1M/IPEX/S/S/17
ActiveSiretta Ltd
2G/3G/4G EMBEDDED SMALL PCB ANTE
Deep-Dive with AI
Search across all available documentation for this part.
ECHO35/0.1M/IPEX/S/S/17
ActiveSiretta Ltd
2G/3G/4G EMBEDDED SMALL PCB ANTE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECHO35/0.1M/IPEX/S/S/17 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | LTE, UMTS, GSM |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.2 GHz, 825 MHz |
| Frequency Group [Max] | 1 GHz, 3 GHz |
| Frequency Group [Min] | 300 MHz, 2 GHz |
| Frequency Range [Max] | 2.7 GHz, 960 MHz |
| Frequency Range [Min] | 1.7 GHz, 690 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, U.FL (UMCC) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.11 | |
| 10 | $ 10.03 | |||
| 25 | $ 8.97 | |||
| 100 | $ 7.80 | |||
| 250 | $ 7.23 | |||
| 500 | $ 6.88 | |||
| 1000 | $ 6.71 | |||
Description
General part information
ECHO35 Series
RF ANTENNA GSM, LTE, UMTS PCB Trace U.FL (UMCC), IPEX MHF1 Surface Mount
