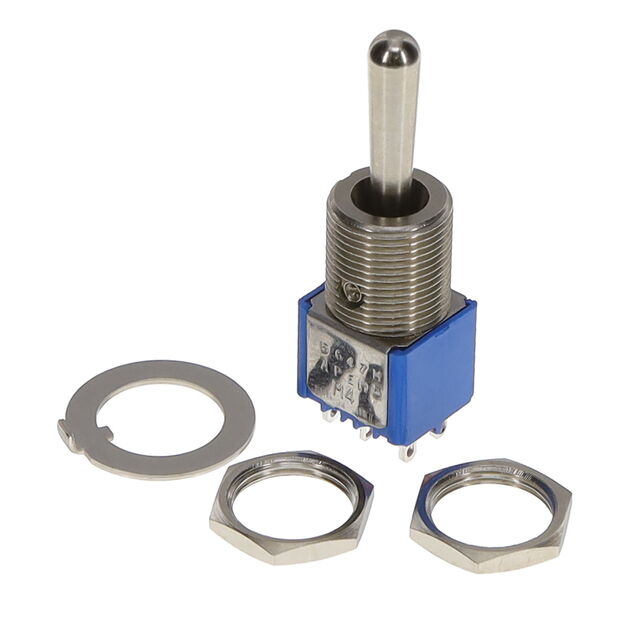

5647MAB

Active

APEM

TOGGLE SWITCH 5000 MINIATURE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

TOGGLE SWITCH 5000 MINIATURE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	5647MAB

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - DC	Illumination	Actuator Type	Features	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Actuator Length [x]	Actuator Material	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Electrical Life	Switch Function
APEM 5647MAKB	30 V	Non-Illuminated	Standard Round	Front Panel Sealing	125 V	85 °C	-40 °C	15/32-32	17.5 mm	Brass Nickel Plated	DPDT	12.5 mm	Solder Lug	4 A 6 A	50000 Cycles	Mom-Off-Mom
APEM 5647MAB	30 V	Non-Illuminated	Standard Round	Epoxy Sealed Terminals	125 V	85 °C	-40 °C	15/32-32	17.5 mm	Brass Nickel Plated	DPDT	12.5 mm	Solder Lug	4 A 6 A	50000 Cycles	Mom-Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
