SM50B-SRDS-G-TF

Active

JST Sales America Inc.

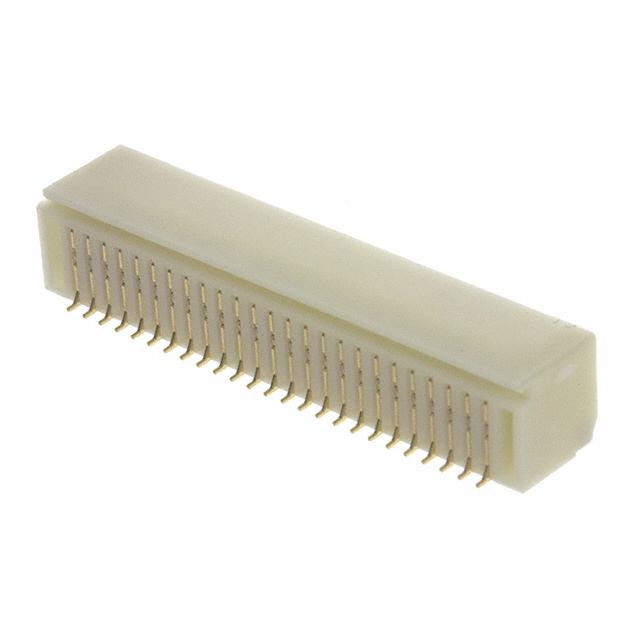

CONN HEADER SMD R/A 50POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 50POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM50B-SRDS-G-TF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Voltage Rating	Features	Mounting Type	Style	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Contact Material	Insulation Material	Number of Rows	Connector Type	Fastening Type	Termination	Number of Positions Loaded	Contact Type	Insulation Color	Number of Positions
JST Sales America Inc. SM50B-SRDS-G-TF	5.51 mm	0.217 in	Gold	50 V	Pick and Place Solder Retention	Surface Mount Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	0.039 in	1 mm	-25 °C	85 °C	Square	UL94 V-0	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	2	Header	Push-Pull	Solder	All	Male Pin	Natural	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 50 position 0.039" (1.00mm)
