8FM-38-0009-02-146191

Active

PRECI-DIP SA

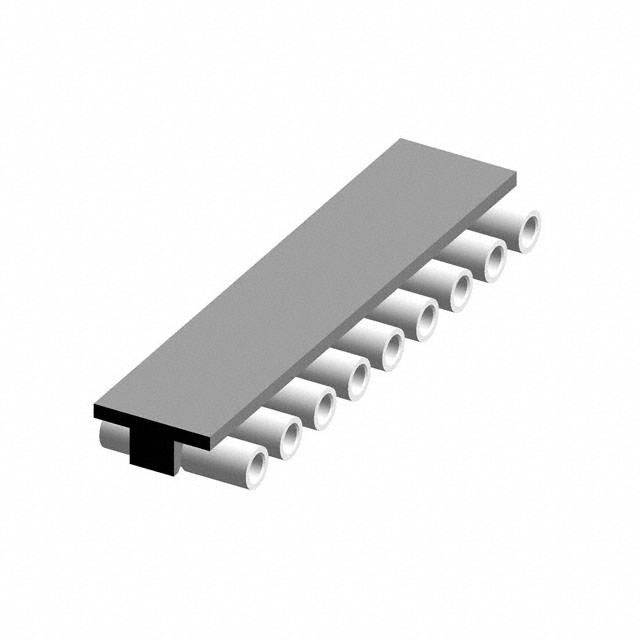

CONN SOCKET 9P 0.1 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

8FM-38-0009-02-146191

Active

PRECI-DIP SA

CONN SOCKET 9P 0.1 GOLD SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8FM-38-0009-02-146191

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.096 "
Insulation Height	2.44 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

8FM-38 Series

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Fastening Type	Number of Rows	Insulation Material	Insulation Height	Insulation Height	Contact Finish - Mating	Features	Contact Shape	Contact Type	Number of Positions Loaded	Contact Material	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Mounting Type	Number of Positions
PRECI-DIP SA 8FM-38-0005-02-146191	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold	Pick and Place	Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle
PRECI-DIP SA 8FM-38-0002-02-146191	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold	Pick and Place	Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	2
PRECI-DIP SA 8FM-38-0004-02-146	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold		Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	4
PRECI-DIP SA 8FM-38-0006-02-146191	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold	Pick and Place	Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	6
PRECI-DIP SA 8FM-38-0008-02-146191	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold	Pick and Place	Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	8
PRECI-DIP SA 8FM-38-0009-02-146191	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold	Pick and Place	Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	9
PRECI-DIP SA 8FM-38-0003-02-146	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold		Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle
PRECI-DIP SA 8FM-38-0007-02-146	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold		Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	7
PRECI-DIP SA 8FM-38-0006-02-146	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold		Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	6
PRECI-DIP SA 8FM-38-0009-02-146	Black	29.5 Áin	0.75 Ám	-55 °C	125 °C	3 A	Socket	Push-Pull	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.096 "	2.44 mm	Gold		Circular	Female Socket	All	Beryllium Copper	UL94 V-0	Solder	0.1 in	2.54 mm	Tin	Surface Mount Right Angle	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 1.64

Description

General part information

8FM-38 Series

9 Position Socket Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

No documents available
