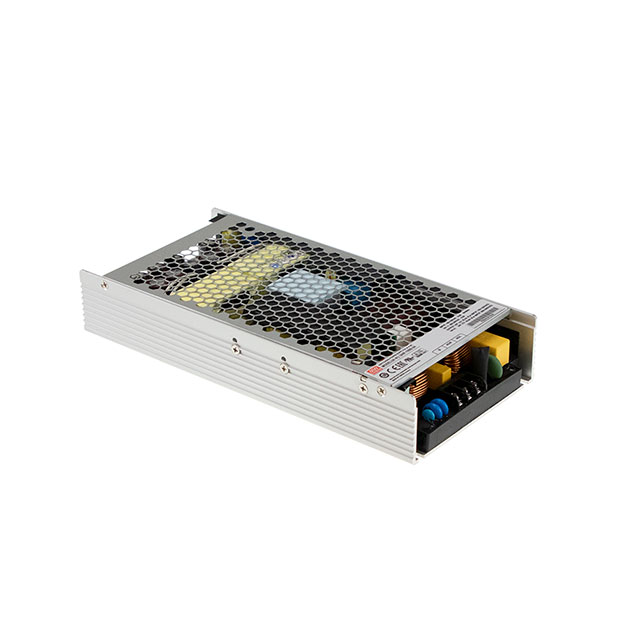

UHP-1000-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 1008W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHP-1000-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 1008W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UHP-1000-24 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | TUV, cURus, EAC, CE, CB |
| Current - Output 1 | 42 A |
| Efficiency | 95 % |
| Features | PFC, Remote On/Off, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 1.008 kW |
| Size / Dimension [x] | 240 mm |
| Size / Dimension [x] | 9.45 " |
| Size / Dimension [y] | 115 mm |
| Size / Dimension [y] | 4.53 " |
| Size / Dimension [z] | 41 mm |
| Size / Dimension [z] | 1.61 " |
| Type | Enclosed |
| Voltage - Isolation | 3750 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 293.02 | |
| 5 | $ 276.05 | |||
| 10 | $ 269.05 | |||
| 25 | $ 260.06 | |||
Description
General part information
UHP-1000 Series
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 250 ~ 370 VDC Input
