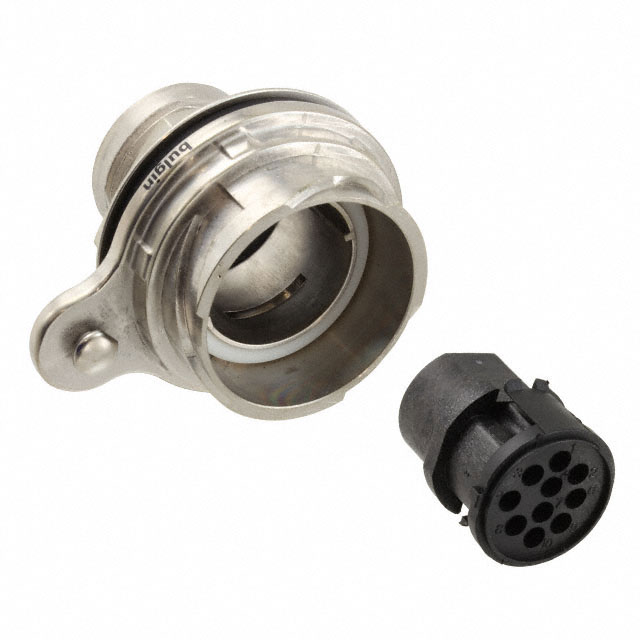

PXM7012/10S/CR

Active

BULGIN LIMITED

CONN RCPT HSG FMALE 10POS PNL MT

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN RCPT HSG FMALE 10POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	PXM7012/10S/CR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	Connector, Washer, Nut
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Unshielded
Type	For Female Sockets

Part	Number of Positions	Housing Color	Note	Orientation	Ingress Protection	Contact Shape	Shielding	Shell Finish	Includes	Primary Material	Fastening Type	Connector Type	Shell Material	Contact Type	Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Color	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Voltage Rating
BULGIN LIMITED PXM7012/10P/CR	10	Silver	Contacts Not Included	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Circular	Unshielded	Nickel	Connector Nut Washer	Metal	Bayonet Lock	Receptacle Housing	Zinc Alloy	Crimp and Solder Cup	For Male Pins	Bulkhead - Rear Side Nut	-40 °C	120 °C
BULGIN LIMITED PXM7012/10S/CR	10	Silver	Contacts Not Included	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Circular	Unshielded	Nickel	Connector Nut Washer	Metal	Bayonet Lock	Receptacle Housing	Zinc Alloy	Crimp and Solder Cup	For Female Sockets	Bulkhead - Rear Side Nut	-40 °C	120 °C
BULGIN LIMITED PXM7012/03S/ST				Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Unshielded	Nickel		Metal	Bayonet Lock	Receptacle Female Sockets	Zinc Alloy			Bulkhead - Rear Side Nut	-40 °C	120 °C	Screw	Silver	25 A	Nickel	Brass	3	1	2	600 V
BULGIN LIMITED PXM7012/32S/CR	32	Silver	Contacts Not Included	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Circular	Unshielded	Nickel	Connector Nut Washer	Metal	Bayonet Lock	Receptacle Housing	Zinc Alloy	Crimp and Solder Cup	For Female Sockets	Bulkhead - Rear Side Nut	-40 °C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 31.19

General part information

10 (Power) Position Circular Connector Receptacle Housing Panel Mount
