19411060522

Active

HARTING Technology Group

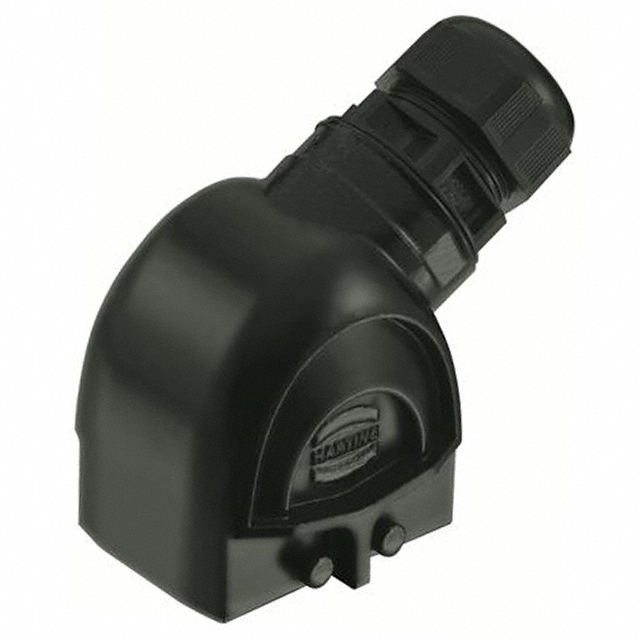

HEAVY DUTY CONNECTOR, 1 X M32, HOOD, SIDE ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 1 X M32, HOOD, SIDE ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	19411060522

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	2.402 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	68.4 mm
Size / Dimension [z]	2.693 in
Style	Side Entry
Thread Size	M32

Part	Thread Size	Housing Material	Style	Housing Color	Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Ingress Protection
HARTING Technology Group 19411060522	M32	Polyamide (PA) Nylon Glass Filled	Side Entry	Black	6B	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.244 "	68.4 mm	2.402 in	57 mm	61 mm	2.693 in	Hood	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19411060422	M32	Polyamide (PA) Nylon Glass Filled	Top Entry	Black	6B	125 °C	-40 °C	Locking Clip (2) on Base Bottom	2.244 "	114.1 mm	2.402 in	57 mm	61 mm	4.492 in	Hood	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M32 6B IP65 - Dust Tight, Water Resistant
