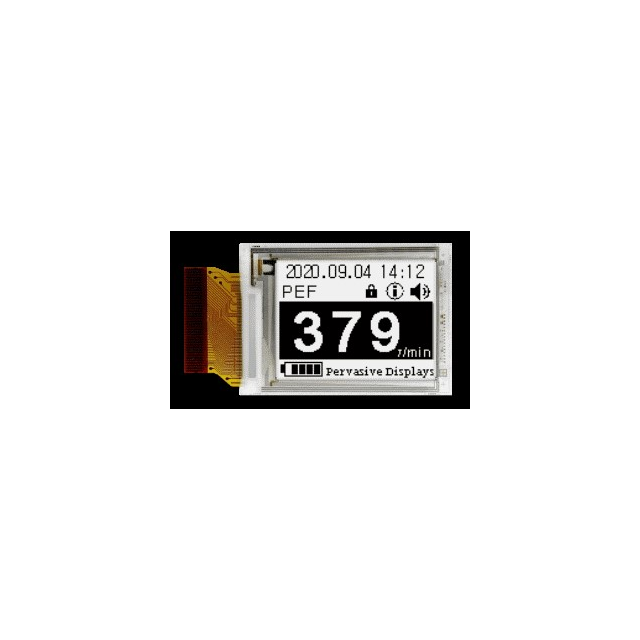

E2144CS021

Active

Pervasive Displays

DISPLAY 1.44" B&W AURORA MB EC

Search across all available documentation for this part.

Active

Pervasive Displays

DISPLAY 1.44" B&W AURORA MB EC

Technical Specifications

Parameters and characteristics for this part

Specification	E2144CS021

Background Color	White
Backlight	Without Backlight
Diagonal Screen Size [custom]	1.44 in
Diagonal Screen Size [custom]	36.57 mm
Display Mode	Reflective
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.23 mm
Dot Pitch [y]	0.23 mm
Dot Pixels [x]	128
Dot Pixels [y]	96
Graphics Color	Black
Interface	SPI
Viewing Area [x]	29.31 mm
Viewing Area [y]	21.98 mm

Part	Interface	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Graphics Color	Viewing Area [y]	Viewing Area [x]	Background Color	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Dot Pixels [x]	Dot Pixels [y]	Backlight	Display Type
Pervasive Displays E2144CS021	SPI	1.44 in	36.57 mm	Black	21.98 mm	29.31 mm	White	0.23 mm	0.23 mm	Reflective	128	96	Without Backlight	TFT - Electronic Paper Display (EPD)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.60

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 1.44" (36.57mm) 128 x 96
