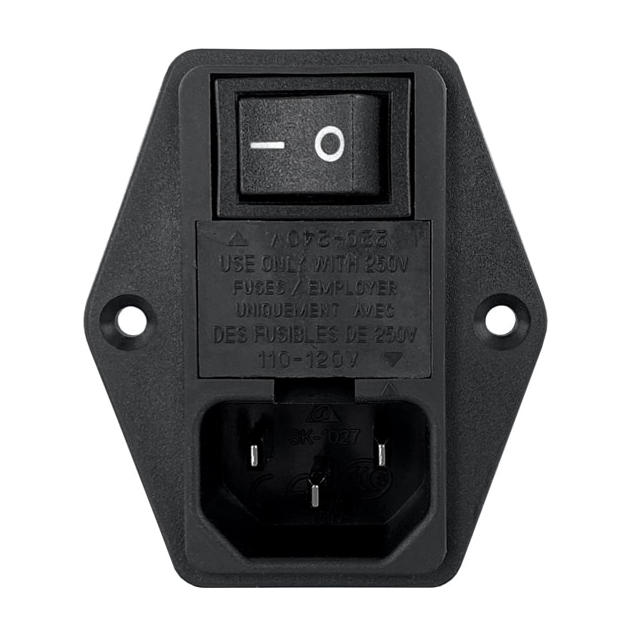

883-03/001
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
883-03/001
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 883-03/001 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 3 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 55.9 mm |
| Switch Features | Switch On-Off |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 25.44 | |
| 10 | $ 22.27 | |||
| 30 | $ 21.31 | |||
| 40 | $ 20.62 | |||
| 80 | $ 19.94 | |||
| 230 | $ 18.84 | |||
| 440 | $ 18.29 | |||
Description
General part information
883-03 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Documents
Technical documentation and resources
