09620400440

Active

HARTING Technology Group

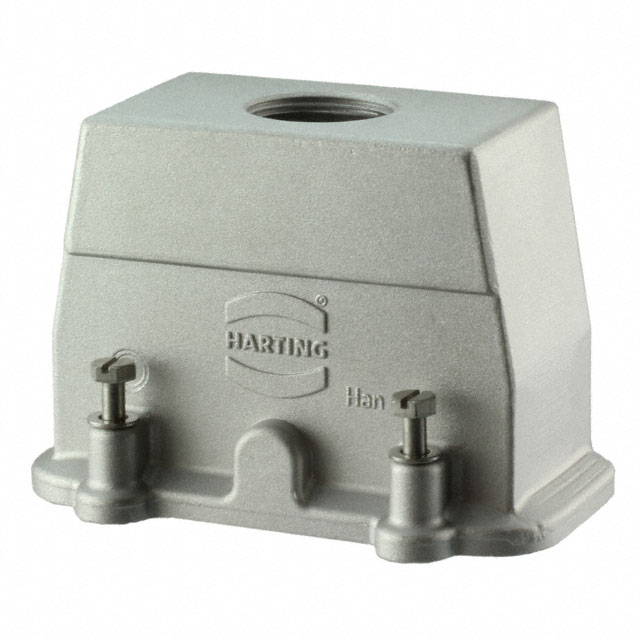

HAN EMC 40 HOOD TOP ENTRY PG 21 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN EMC 40 HOOD TOP ENTRY PG 21 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09620400440

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.193 "
Size / Dimension [x]	106.5 mm
Size / Dimension [y]	71 mm
Size / Dimension [y]	2.795 in
Size / Dimension [z]	2.953 in
Size / Dimension [z]	75 mm
Style	Top Entry
Thread Size	PG21

Part	Housing Material	Size	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Lock Location	Style	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
HARTING Technology Group 09620400381	Aluminum Die Cast	16 B	125 °C	-40 °C	Base - Panel Mount	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	Bottom Entry
HARTING Technology Group 09620400440	Aluminum Die Cast	16 B	125 °C	-40 °C	Hood	IP65 - Dust Tight Water Resistant	Screw Locks on Hood	Top Entry	PG21	4.193 "	2.953 in	71 mm	2.795 in	106.5 mm	75 mm
HARTING Technology Group 09620400541	Aluminum Die Cast	16 B	125 °C	-40 °C	Hood	IP65 - Dust Tight Water Resistant	Screw Locks on Hood	Side Entry	PG29	4.193 "	2.953 in	71 mm	2.795 in	106.5 mm	75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry PG21 16B IP65 - Dust Tight, Water Resistant
