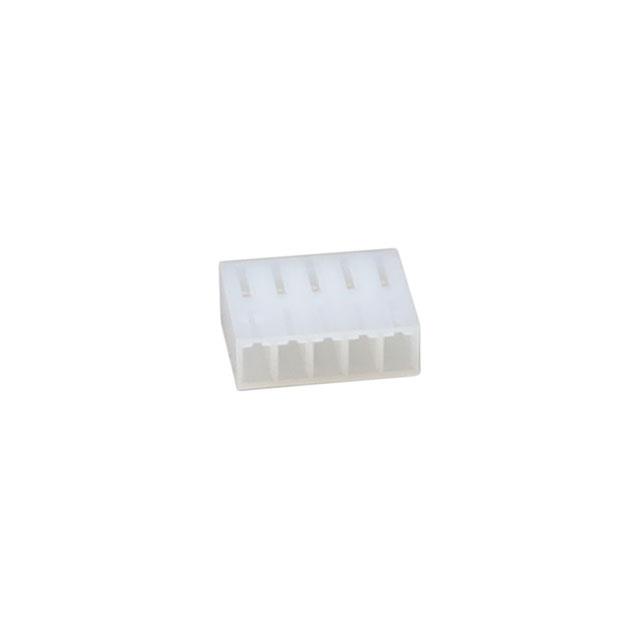

0026033051

Active

Molex

CONN HOUSING RCP 5 POS 3.96MM CRIMP ST CABLE MOUNT NATURAL KK® BAG

Deep-Dive with AI

Search across all available documentation for this part.

0026033051

Active

Molex

CONN HOUSING RCP 5 POS 3.96MM CRIMP ST CABLE MOUNT NATURAL KK® BAG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026033051

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Non-Gendered
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

002603 Series

Part	Contact Termination	Note	Color	Fastening Type	Mounting Type	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Number of Positions	Features
Molex 0026034050	Crimp	Contacts Not Included	Natural	Locking Ramp	Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered
Molex 0026033141	Crimp	Contacts Not Included	Natural		Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	14
Molex 0026034076	Crimp	Contacts Not Included	Natural	Friction Lock	Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	7	Position 6 Molded Closed
Molex 0026034090	Crimp	Contacts Not Included	Natural	Locking Ramp	Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	9
Molex 0026033211	Crimp	Contacts Not Included	Natural		Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	21
Molex 0026033051	Crimp	Contacts Not Included	Natural		Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered
Molex 0026034171	Crimp	Contacts Not Included	Natural	Friction Lock	Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered
Molex 0026034101	Crimp	Contacts Not Included	Natural	Friction Lock	Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	10
Molex 0026034112	Crimp	Contacts Not Included	Natural	Friction Lock	Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	11	Position 2 Molded Closed
Molex 0026033061	Crimp	Contacts Not Included	Natural		Free Hanging (In-Line)	1	Receptacle	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	Non-Gendered	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
		10	$ 0.17
		100	$ 0.12
		1000	$ 0.10

Description

General part information

002603 Series

5 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)

Documents

Technical documentation and resources

No documents available
