M55-7101642R
ActiveHarwin Inc.

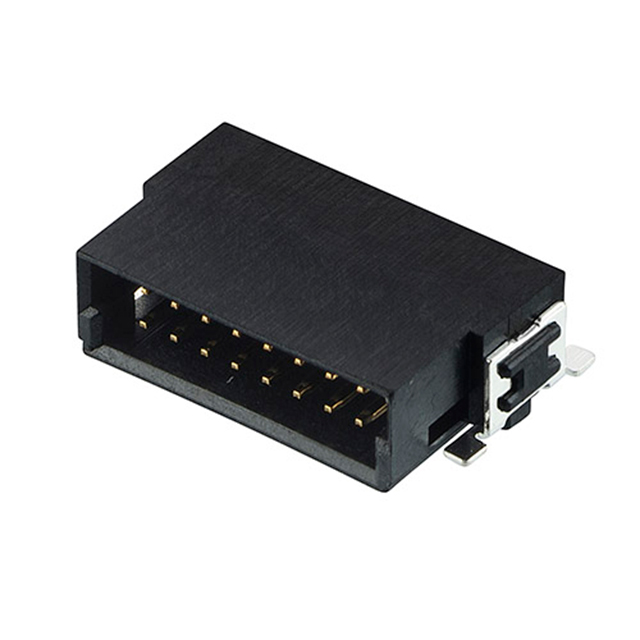

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
M55-7101642R
ActiveHarwin Inc.
PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M55-7101642R |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Finish Thickness - Mating | 0.025 µm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.2 A |
| Fastening Type | Latch Lock |
| Features | Solder Retention, Board Guide |
| Insulation Color | Black |
| Insulation Height [z] | 0.165 in |
| Insulation Height [z] | 4.2 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
M55-710 Series
| Part | Fastening Type | Number of Positions | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Features | Connector Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Number of Positions Loaded | Shrouding | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Mounting Type | Number of Rows | Current Rating (Amps) | Insulation Material | Applications | Contact Material | Contact Length - Mating | Contact Length - Mating | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Finish - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Latch Lock | 68 | Male Pin | 1 µin | 0.025 µm | 0.05 in | 1.27 mm | Gold | Board Guide Solder Retention | Header | Solder | 2.54 µm | 100 µin | Rectangular | All | Shrouded - 4 Wall | 0.05 in | 1.27 mm | -55 °C | 125 °C | Black | Surface Mount Right Angle | 2 | 1.2 A | Liquid Crystal Polymer (LCP) | Automotive General Purpose Industrial | Phosphor Bronze | 4 mm | 0.157 in | 0.165 in | 4.2 mm | UL94 V-0 | Tin | |
Harwin Inc. | Latch Lock | 50 | Male Pin | 1 µin | 0.025 µm | 0.05 in | 1.27 mm | Gold | Board Guide Solder Retention | Header | Solder | 2.54 µm | 100 µin | Rectangular | All | Shrouded - 4 Wall | 0.05 in | 1.27 mm | -55 °C | 125 °C | Black | Surface Mount Right Angle | 2 | 1.2 A | Liquid Crystal Polymer (LCP) | Automotive General Purpose Industrial | Phosphor Bronze | 4 mm | 0.157 in | 0.165 in | 4.2 mm | UL94 V-0 | Tin | |
Harwin Inc. | Latch Lock | 26 | Male Pin | 1 µin | 0.025 µm | 0.05 in | 1.27 mm | Gold | Board Guide Solder Retention | Header | Solder | 2.54 µm | 100 µin | Rectangular | All | Shrouded - 4 Wall | 0.05 in | 1.27 mm | -55 °C | 125 °C | Black | Surface Mount Right Angle | 2 | 1.2 A | Liquid Crystal Polymer (LCP) | Automotive General Purpose Industrial | Phosphor Bronze | 4 mm | 0.157 in | 0.165 in | 4.2 mm | UL94 V-0 | Tin | |
Harwin Inc. | Latch Lock | Male Pin | 1 µin | 0.025 µm | 0.05 in | 1.27 mm | Gold | Board Guide Solder Retention | Header | Solder | 2.54 µm | 100 µin | Rectangular | All | Shrouded - 4 Wall | 0.05 in | 1.27 mm | -55 °C | 125 °C | Black | Surface Mount Right Angle | 2 | 1.2 A | Liquid Crystal Polymer (LCP) | Automotive General Purpose Industrial | Phosphor Bronze | 4 mm | 0.157 in | 0.165 in | 4.2 mm | UL94 V-0 | Tin | 16 | |
Harwin Inc. | Latch Lock | 20 | Male Pin | 1 µin | 0.025 µm | 0.05 in | 1.27 mm | Gold | Board Guide Solder Retention | Header | Solder | 2.54 µm | 100 µin | Rectangular | All | Shrouded - 4 Wall | 0.05 in | 1.27 mm | -55 °C | 125 °C | Black | Surface Mount Right Angle | 2 | 1.2 A | Liquid Crystal Polymer (LCP) | Automotive General Purpose Industrial | Phosphor Bronze | 4 mm | 0.157 in | 0.165 in | 4.2 mm | UL94 V-0 | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M55-710 Series
Connector Header Surface Mount, Right Angle 16 position 0.050" (1.27mm)
