346-064-558-803

Active

EDAC Inc.

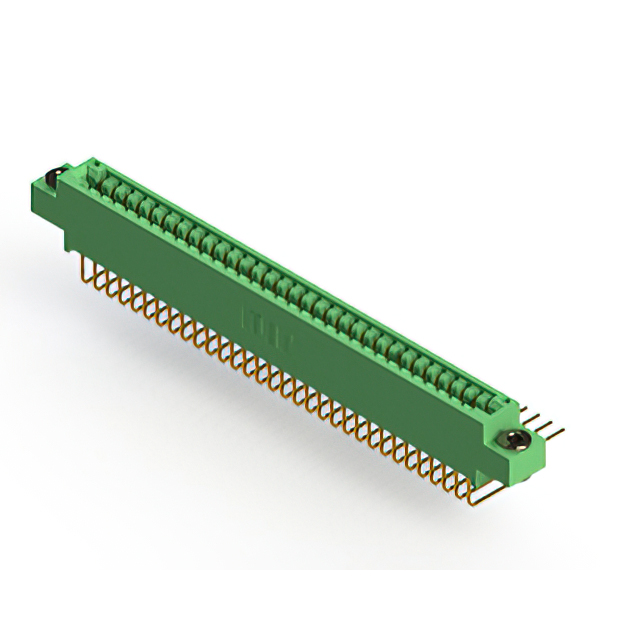

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

346-064-558-803

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-064-558-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

346-064 Series

...

Part	Card Type	Gender	Number of Positions	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Contact Material	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Read Out	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features
EDAC Inc. 346-064-540-203	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-558-803	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole Right Angle	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-558-808	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole Right Angle	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2		4-40 Threaded Insert Top Mount Opening		Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-556-878	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Board Edge Straddle Mount	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2		4-40 Threaded Insert Top Mount Opening		Solder	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-526-201	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2				Solder	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-555-807	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Board Edge Straddle Mount	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2		M3 Threaded Insert Top Mount Opening		Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 346-064-540-258	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2		4-40 Flush Mount Threaded Insert Top Opening		Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 346-064-500-803	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-522-202	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Through Hole	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-064-555-204	Non Specified - Dual Edge	Female	64	Polyester Thermoplastic	-40 °C	105 ░C	0.125 in	3.18 mm	Board Edge Straddle Mount	Gold	Copper Alloy	Cantilever	10 Áin	0.25 Ám	Green	Dual	32	2	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.46
Newark	Each	1	$ 14.88
		100	$ 10.10
		250	$ 8.90
		500	$ 8.19
		1000	$ 6.89

Description

General part information

346-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
