XS112BLPBL2

Active

TELEMECANIQUE SENSORS

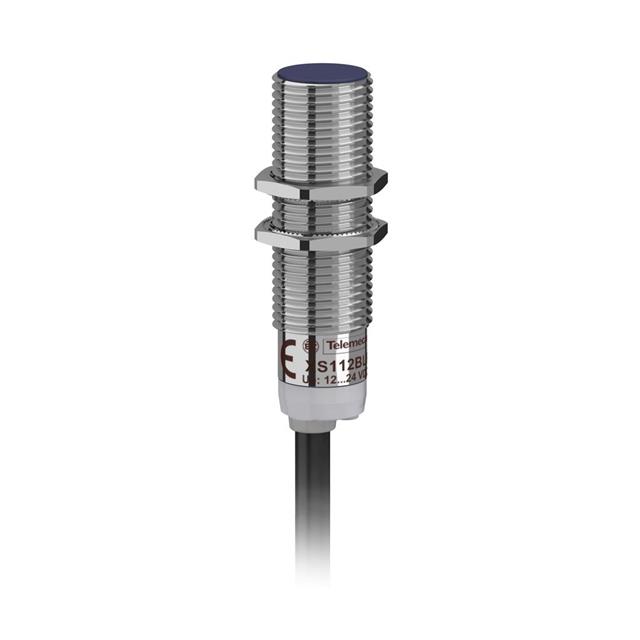

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M12, 2 MM, PNP-NC, 12 TO 24 VDC, PRE-WIRED

Search across all available documentation for this part.

Active

TELEMECANIQUE SENSORS

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M12, 2 MM, PNP-NC, 12 TO 24 VDC, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Indicator [custom]	Package / Case	Termination Style	Sensing Distance	Sensing Distance	Material - Body	Sensor Type	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]
TELEMECANIQUE SENSORS XS112BLPBL2	PNP-NC 3-Wire	70 °C	-25 °C	Unshielded	LED	Cylinder Threaded - M12	Cable Leads	0.079 in	2 mm	Nickel-Plated Brass	Inductive	IP67	12 V	24 V
TELEMECANIQUE SENSORS XS4P12PA370L1	PNP-NO 3-Wire	70 °C	-25 °C	Unshielded	LED	Cylinder Threaded - M18	Cable Leads	0.157 in	4 mm	Polyphenylene Sulfide (PPS)	Inductive	IP68
TELEMECANIQUE SENSORS XS4P12KP340	4-Wire NC NO NPN PNP	70 °C	-25 °C	Shielded	LED	Cylinder Threaded - M12	Cable	0.157 in	4 mm	Plastic	Inductive	IP68	12 V	24 V
TELEMECANIQUE SENSORS XS4P18MB230	NC 2-Wire	70 °C	-25 °C	Unshielded	LED	Cylinder Threaded - M18	Cable Leads	0.315 in	8 mm	Polyphenylene Sulfide (PPS)	Inductive	IP68	24 VAC	240 VAC
TELEMECANIQUE SENSORS XS1N05NB310	NPN-NC 3-Wire	70 °C	-25 °C	Shielded	LED	Cylinder Threaded - M5	Cable	0.039 "	1 mm	Metal	Inductive	IP67	5 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Inductive Proximity Sensor 0.079" (2mm) IP67 Cylinder, Threaded - M12
