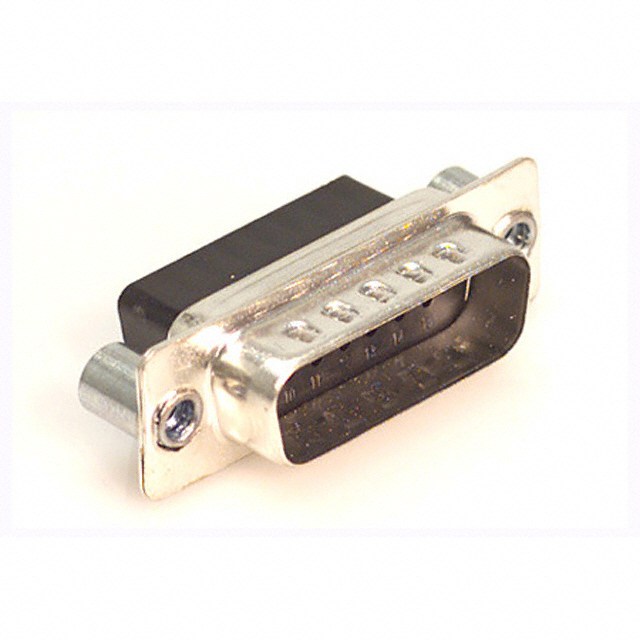

170-015-173L020

Active

MH Connectors

D SUB HOUSING, PLUG, 15POS, DA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet +2

170-015-173L020

Active

MH Connectors

D SUB HOUSING, PLUG, 15POS, DA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-015-173L020

Color	Black
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

170-015 Series

Part	Color	Number of Positions	Connector Type	Shell Size, Connector Layout	Dielectric Material	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Flange Feature	Contact Type	Connector Style	Shell Material, Finish	Features
MH Connectors 170-015-172L000	Black	15	Plug for Male Contacts	2	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Housing/Shell (Unthreaded)	Signal	D-Sub
MH Connectors 170-015-272L000	Black	15	Receptacle for Female Contacts	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Housing/Shell (Unthreaded)	Signal	D-Sub
MH Connectors 170-015-273L010	Black	15	Receptacle for Female Contacts	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Cable Side	Signal	D-Sub	Nickel Plated Steel
MH Connectors 170-015-173L020	Black	15	Plug for Male Contacts	2	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Cable Side	Signal	D-Sub	Nickel Plated Steel	Grounding Indents
MH Connectors 170-015-273L030	Black	15	Receptacle for Female Contacts	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	4-40	Signal	D-Sub	Nickel Plated Steel
MH Connectors 170-015-272L030	Black	15	Receptacle for Female Contacts	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	4-40	Signal	D-Sub
MH Connectors 170-015-272L010	Black	15	Receptacle for Female Contacts	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Cable Side	Signal	D-Sub
MH Connectors 170-015-173L000		15	Plug for Male Contacts	2	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Housing/Shell (Unthreaded)	Signal	D-Sub	Nickel Plated Steel	Grounding Indents
MH Connectors 170-015-172L010	Black	15	Plug for Male Contacts	2	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	-50 °C	125 °C	Free Hanging (In-Line)	2	Cable Side	Signal	D-Sub

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.09
		10	$ 2.36
		25	$ 2.12
		40	$ 2.01
		80	$ 1.86
		230	$ 1.66
		440	$ 1.55
		945	$ 1.44
		2400	$ 1.31
Newark	Each	1	$ 2.35
		10	$ 1.97
		50	$ 1.79
		100	$ 1.64
		250	$ 1.52
		500	$ 1.40
		1000	$ 1.31
		2500	$ 1.23

Description

General part information

170-015 Series

Plug for Male Contacts Housing D-Sub Connector 15 Position
