P1059/16 BK005

Active

ALPHA WIRE

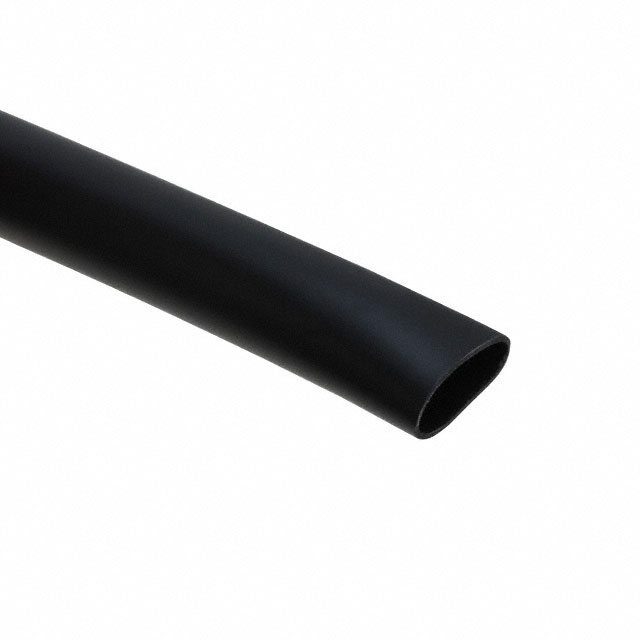

TUBING 0.562" ID PVC 100' BLACK

Search across all available documentation for this part.

Active

ALPHA WIRE

TUBING 0.562" ID PVC 100' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	P1059/16 BK005

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside [diameter]	0.562 in
Diameter - Inside [diameter]	14.27 mm
Diameter - Outside [diameter]	16.56 mm
Diameter - Outside [diameter]	0.652 in
Environment Protection	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness [custom]	0.03 in
Wall Thickness [custom]	0.76 mm

Part	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Heat Protection	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes	Abrasion Protection	Type	Color	Material	Environment Protection	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Liquid Protection
ALPHA WIRE P1059/16 BK005	100 ft	30.48 m	0.562 in	14.27 mm	Heat Resistant	0.03 in	0.76 mm	-20 C	105 ░C	Smooth	Abrasion Resistant	Solid Tubing	Black	Poly-Vinyl Chloride (PVC)	Corrosion Resistant UV Resistant	UL 224 VW-1	16.56 mm	0.652 in	Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.562" (14.27mm) 100' (30.48m)
