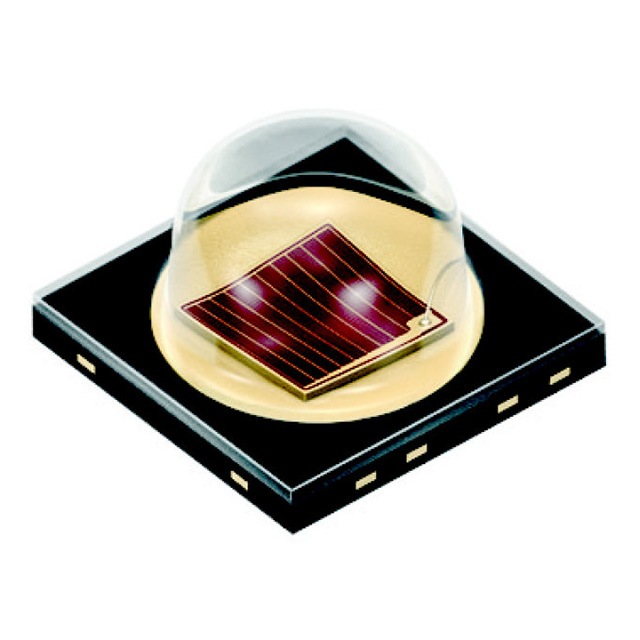

LA H9GP-JYKZ-24-H29C-350-R18-Z
Activeams-OSRAM USA INC.
LED OSLON AMBER 617NM 3SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LA H9GP-JYKZ-24-H29C-350-R18-Z |
|---|---|
| Color | Amber |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] | 2.41 mm |
| Height - Seated (Max) [Max] [z] | 0.095 in |
| Lumens/Watt @ Current - Test | 106 lm/W |
| Luminous Flux @ Current/Temperature | 82 lm |
| Luminous Flux @ Current/Temperature [Max] | 112 lm |
| Luminous Flux @ Current/Temperature [Min] | 52 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 3.75 mm |
| Size / Dimension [y] | 0.148 in |
| Supplier Device Package | 3-SMD |
| Viewing Angle [custom] | 90 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength | 617 nm |
| Wavelength [Max] | 624 nm |
| Wavelength [Min] | 612 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.80 | |
| 10 | $ 1.20 | |||
| 100 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.80 | ||
| 10 | $ 1.20 | |||
| 100 | $ 0.92 | |||
| Tape & Reel (TR) | 600 | $ 0.65 | ||
Description
General part information
LAH9GP Series
LED Lighting Color OSLON® Black Amber 617nm (612nm ~ 624nm) 3-SMD, No Lead
